Produkt
Weidmueller
9013560000
HTF RSV 16 WI
Poproś o ofertę

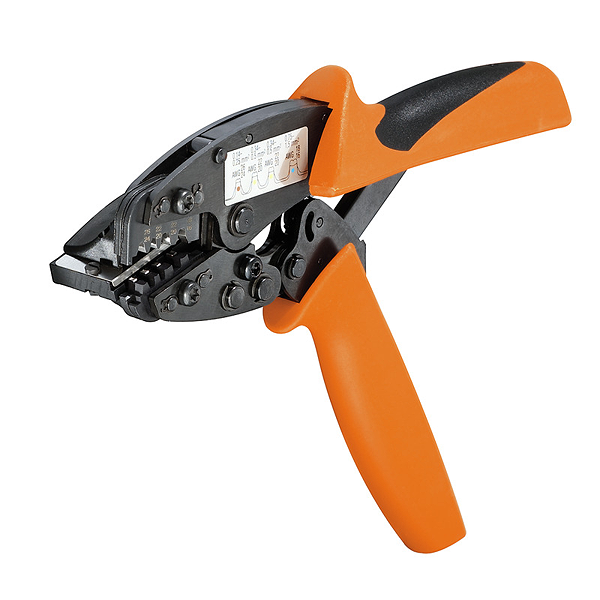

Prawa autorskie do obrazu: Weidmueller
Weidmueller 9013560000
HTF RSV 16 WI
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HTF RSV 16 WI |
| Order No.: | 9013560000 |
| Version: | Pressing tool, Crimping tool for contacts, FoderBcrimp |
| GTIN (EAN): | 4008190161163 |
| Qty.: | 1 pc(s). |
| Width: | 205 mm |
| Width (inches): | 8.071 inch |
| Weight: | 445 g |
| Net weight: | 457.48 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | RSV and DSTV-HD |
| Conductor cross-section, max. AWG: | AWG 16 |
| Conductor cross-section, min. AWG: | AWG 26 |
| Crimping profile 1, min.: | 26 AWG |
| Crimping type/profile: | FoderBcrimp |
| Crimping profile 1, max.: | 24 AWG |
| Crimping profile 2, min.: | 22 AWG |
| Crimping profile 2, max.: | 20 AWG |
| Crimping profile 3, min.: | 22 AWG |
| Crimping profile 3, max.: | 20 AWG |
| Crimping profile 4, min.: | 16 AWG |
| Crimping profile 4, max.: | 18 AWG |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 27-11-27-20 |
| Type: | HTF RSV 16 WI |
| Order No.: | 9013560000 |
| Version: | Pressing tool, Crimping tool for contacts, FoderBcrimp |
| GTIN (EAN): | 4008190161163 |
| Qty.: | 1 pc(s). |
| Width: | 205 mm |
| Width (inches): | 8.071 inch |
| Weight: | 445 g |
| Net weight: | 457.48 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | RSV and DSTV-HD |
| Conductor cross-section, max. AWG: | AWG 16 |
| Conductor cross-section, min. AWG: | AWG 26 |
| Crimping profile 1, min.: | 26 AWG |
| Crimping type/profile: | FoderBcrimp |
| Crimping profile 1, max.: | 24 AWG |
| Crimping profile 2, min.: | 22 AWG |
| Crimping profile 2, max.: | 20 AWG |
| Crimping profile 3, min.: | 22 AWG |
| Crimping profile 3, max.: | 20 AWG |
| Crimping profile 4, min.: | 16 AWG |
| Crimping profile 4, max.: | 18 AWG |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 27-11-27-20 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,544 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
