Produkt
Weidmueller
9011460000
PZ 6/5
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

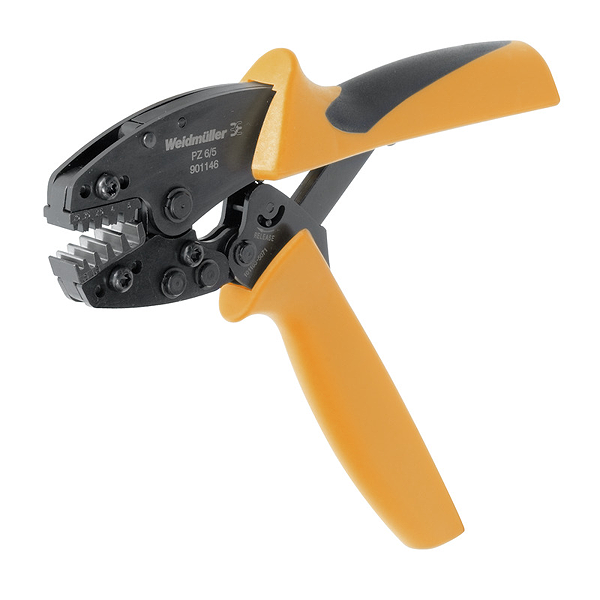

Weidmueller 9011460000
PZ 6/5
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | PZ 6/5 |
| Order No.: | 9011460000 |
| Version: | Pressing tool, Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp |
| GTIN (EAN): | 4008190165352 |
| Qty.: | 1 pc(s). |
| Width: | 200 mm |
| Width (inches): | 7.874 inch |
| Weight: | 423 g |
| Net weight: | 433 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Wire-end ferrules with/without plastic collars |
| Crimping range, min.: | 0.25 mm² |
| Crimping range, max.: | 6 mm² |
| Conductor cross-section, max. AWG: | AWG 10 |
| Conductor cross-section, min. AWG: | AWG 24 |
| Crimping profile 1, min.: | 0.25 mm² |
| Crimping type/profile: | Trapezoidal indentation crimp |
| Wire end ferrules cross-section, min.: | 0.25 mm² |
| Crimping profile 1, max.: | 0.5 mm² |
| Wire end ferrules cross-section, max.: | 6 mm² |
| Crimping profile 2, min.: | 0.75 mm² |
| Crimping profile 2, max.: | 1.5 mm² |
| Crimping profile 3, min.: | 2.5 mm² |
| Crimping profile 4, min.: | 4 mm² |
| Crimping profile 5: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 31-16-31-02 |
| Type: | PZ 6/5 |
| Order No.: | 9011460000 |
| Version: | Pressing tool, Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp |
| GTIN (EAN): | 4008190165352 |
| Qty.: | 1 pc(s). |
| Width: | 200 mm |
| Width (inches): | 7.874 inch |
| Weight: | 423 g |
| Net weight: | 433 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Wire-end ferrules with/without plastic collars |
| Crimping range, min.: | 0.25 mm² |
| Crimping range, max.: | 6 mm² |
| Conductor cross-section, max. AWG: | AWG 10 |
| Conductor cross-section, min. AWG: | AWG 24 |
| Crimping profile 1, min.: | 0.25 mm² |
| Crimping type/profile: | Trapezoidal indentation crimp |
| Wire end ferrules cross-section, min.: | 0.25 mm² |
| Crimping profile 1, max.: | 0.5 mm² |
| Wire end ferrules cross-section, max.: | 6 mm² |
| Crimping profile 2, min.: | 0.75 mm² |
| Crimping profile 2, max.: | 1.5 mm² |
| Crimping profile 3, min.: | 2.5 mm² |
| Crimping profile 4, min.: | 4 mm² |
| Crimping profile 5: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 31-16-31-02 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,546 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
