2634680000
SL-SMT 5.00HC/14/90G 1.5AU BK BX
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

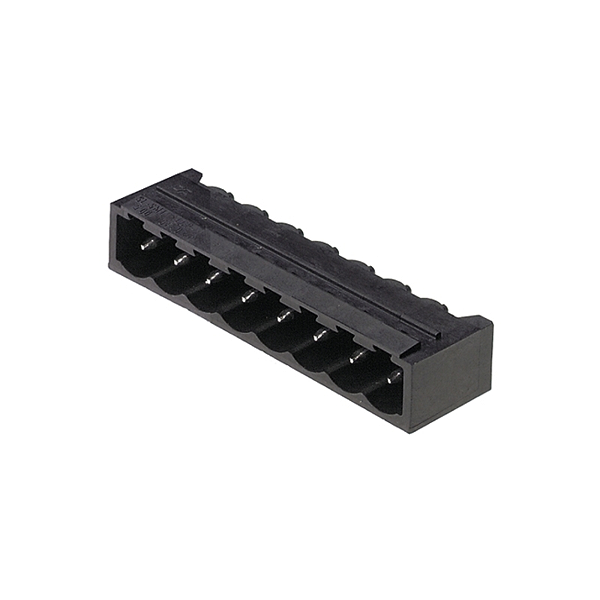

Weidmueller 2634680000
SL-SMT 5.00HC/14/90G 1.5AU BK BX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SL-SMT 5.00HC/14/90G 1.5AU BK BX |
| Order No.: | 2634680000 |
| Version: | PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.00 mm, Number of poles: 14, 90°, Gold-plated |
| GTIN (EAN): | 4050118649949 |
| Qty.: | 50 pc(s). |
| Height of lowest version: | 8.5 mm |
| Depth: | 12 mm |
| Depth (inches): | 0.472 inch |
| Net weight: | 5.922 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.00 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT/THR solder connection |
| Pitch in mm (P): | 5 mm |
| Pitch in inches (P): | 0.197 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 14 |
| Solder pin length tolerance: | +0.1 / -0.2 mm |
| Solder pin dimensions: | d = 1.2 mm, Octagonal |
| Solder pin dimensions = d tolerance: | 0 / -0,03 mm |
| Pin series quantity: | 1 |
| Volume resistance: | ≤ 5mΩ |
| Plugging cycles: | ≥ 200 |
| Plugging force/pole, min.: | 4 N |
| Plugging force/pole, max.: | 7 N |
| Pulling force / pole, min.: | 3 N |
| Pulling force/pole, max.: | 5.5 N |
| Insulating material: | LCP GF |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 175 |
| Moisture Level (MSL): | 1 |
| GWIT: | 930 °C |
| GWFI: | 960 °C |
| Contact material: | CuMg |
| Contact surface: | Gold-plated |
| Layer structure of solder connection: | 1...3 µm Ni / 2...4 µm Sn matt |
| Layer structure of plug contact: | 1...3 µm Ni / 2...4 µm Sn / 1.7...2.3 µm Au |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -30 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 27.5 A |
| Rated current, max. number of poles (Tu=20°C): | 19 A |
| Rated current, min. number of poles (Tu=40°C): | 24 A |
| Rated current, max. number of poles (Tu=40°C): | 16.5 A |
| Rated current (Use group B / CSA): | 15 A |
| Rated current (Use group D / CSA): | 15 A |
| Rated current (Use group B / UL 1059): | 18.5 A |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SL-SMT 5.00HC/14/90G 1.5AU BK BX |
| Order No.: | 2634680000 |
| Version: | PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.00 mm, Number of poles: 14, 90°, Gold-plated |
| GTIN (EAN): | 4050118649949 |
| Qty.: | 50 pc(s). |
| Height of lowest version: | 8.5 mm |
| Depth: | 12 mm |
| Depth (inches): | 0.472 inch |
| Net weight: | 5.922 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.00 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT/THR solder connection |
| Pitch in mm (P): | 5 mm |
| Pitch in inches (P): | 0.197 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 14 |
| Solder pin length tolerance: | +0.1 / -0.2 mm |
| Solder pin dimensions: | d = 1.2 mm, Octagonal |
| Solder pin dimensions = d tolerance: | 0 / -0,03 mm |
| Pin series quantity: | 1 |
| Volume resistance: | ≤ 5mΩ |
| Plugging cycles: | ≥ 200 |
| Plugging force/pole, min.: | 4 N |
| Plugging force/pole, max.: | 7 N |
| Pulling force / pole, min.: | 3 N |
| Pulling force/pole, max.: | 5.5 N |
| Insulating material: | LCP GF |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 175 |
| Moisture Level (MSL): | 1 |
| GWIT: | 930 °C |
| GWFI: | 960 °C |
| Contact material: | CuMg |
| Contact surface: | Gold-plated |
| Layer structure of solder connection: | 1...3 µm Ni / 2...4 µm Sn matt |
| Layer structure of plug contact: | 1...3 µm Ni / 2...4 µm Sn / 1.7...2.3 µm Au |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -30 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 27.5 A |
| Rated current, max. number of poles (Tu=20°C): | 19 A |
| Rated current, min. number of poles (Tu=40°C): | 24 A |
| Rated current, max. number of poles (Tu=40°C): | 16.5 A |
| Rated current (Use group B / CSA): | 15 A |
| Rated current (Use group D / CSA): | 15 A |
| Rated current (Use group B / UL 1059): | 18.5 A |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
