Produkt
Weidmueller
2619220000
VPU AC I 1+1 R 440/25 LCF
Poproś o ofertę

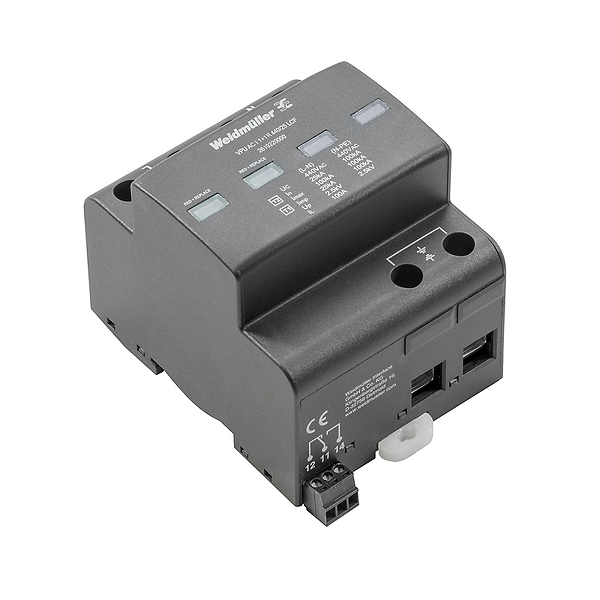

Prawa autorskie do obrazu: Weidmueller
Weidmueller 2619220000
VPU AC I 1+1 R 440/25 LCF
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | VPU AC I 1+1 R 440/25 LCF |
| Order No.: | 2619220000 |
| GTIN (EAN): | 4050118634655 |
| Qty.: | 1 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 106 mm |
| Height (inches): | 4.173 inch |
| Depth: | 93 mm |
| Depth (inches): | 3.661 inch |
| Net weight: | 25 g |
| Humidity: | 5 - 95% rel. humidity |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...85 °C |
| Storage temperature: | -40 °C...85 °C |
| MTBF: | 15 Years |
| Altitude: | ≤ 2000 m |
| Connection type: | Screw connection, pluggable |
| Stripping length: | 8 mm |
| Cross-section for connected wire, solid core, min.: | 0.14 mm² |
| Cross-section for connected wire, solid core, max.: | 1.5 mm² |
| Altitude: | ≤ 2000 m |
| Colour: | black |
| Design: | Installation housing; 4TE, Insta IP 20 |
| Optical function display: | green = OK; red = arrester is defective - replace |
| Protection degree: | IP20 in installed state |
| Rail: | TS 35 |
| Segment: | Power distribution |
| Suitable for: | Count-in installation (leakage current free) |
| UL 94 flammability rating: | V-0 |
| Version: | Surge protection, with remote contact |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Rated voltage (AC): | 400 V |
| Voltage type: | AC |
| Max. continuous voltage, Uc (AC): | 440 V |
| Max. continuous voltage, Uc (N-PE): | 440 V |
| Low voltage network: | Single-phase, TN, TN-S, TT |
| Discharge current In (8/20µs) N-PE: | 100 kA |
| Discharge current Imax (8/20µs) N-PE: | 100 kA |
| Discharge current In (8/20µs) wire-PE: | 25 kA |
| Discharge current Imax (8/20µs) wire-PE: | 100 kA |
| Lightning test current Iimp (10/350 µs) (L-PE): | 25 kA |
| Lightning test current, Iimp (10/350 µs) (N-PE): | 100 kA |
| Frequency range, max.: | 60 Hz |
| Frequency range, min.: | 50 Hz |
| Fuse: | 250 A gL (if back up fuse > 250 A) |
| Short-circuit current rating ISCCR: | 50 kA |
| Follow-on current extinguishing capability Ifi: | Not available due for technical reasons |
| Standards: | IEC61643-11, EN61643-11, EN 60068-2-27:2009, EN 60068-2-64:2008, EN 60068-2-6:2008 |
| Energy coordination (≤10 m): | Type I, Type II, Type III |
| Protection level UP (typ.): | ≤ 2.5 kV |
| Protection level Up at IN (L/N-PE): | ≤ 2.5 kV |
| Protection level Up at IN (N-PE): | ≤ 2.5 kV |
| Leakage current at Un: | 5 µA |
| Temporary surge voltage (over-voltage) - TOV: | 762 V |
| Number of poles: | 2 |
| Rated load current IL: | 100 A |
| Requirements category acc. to IEC 61643-11: | Type I, Type II |
| Requirements class, acc. to EN 61643-11: | T1, T2 |
| Response time: | ≤ 25 ns, ≤ 100 ns |
| Signalling contact: | 250 V 1A 1CO |
| Suitable for: | Count-in installation (leakage current free) |
| Wire connection method: | Screw connection |
| Type of connection: | Screw connection |
| Stripping length, rated connection: | 13 mm |
| Tightening torque, min.: | 2 Nm |
| Tightening torque, max.: | 3 Nm |
| Clamping range, rated connection: | 16 mm² |
| Clamping range, min.: | 6 mm² |
| Clamping range, max.: | 35 mm² |
| Wire cross-section, solid, min.: | 6 mm² |
| Wire cross-section, solid, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 6 mm² |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 35 mm² |
| Connection cross-section, stranded, min.: | 6 mm² |
| Connection cross-section, stranded, max.: | 35 mm² |
| ETIM 6.0: | EC000941 |
| ETIM 7.0: | EC000941 |
| eClass 9.0: | 27-13-08-05 |
| eClass 9.1: | 27-13-08-05 |
| eClass 10.0: | 27-13-08-05 |
| UNSPSC: | 30-21-19-22 |
| ROHS: | Conform |
| Type: | VPU AC I 1+1 R 440/25 LCF |
| Order No.: | 2619220000 |
| GTIN (EAN): | 4050118634655 |
| Qty.: | 1 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 106 mm |
| Height (inches): | 4.173 inch |
| Depth: | 93 mm |
| Depth (inches): | 3.661 inch |
| Net weight: | 25 g |
| Humidity: | 5 - 95% rel. humidity |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...85 °C |
| Storage temperature: | -40 °C...85 °C |
| MTBF: | 15 Years |
| Altitude: | ≤ 2000 m |
| Connection type: | Screw connection, pluggable |
| Stripping length: | 8 mm |
| Cross-section for connected wire, solid core, min.: | 0.14 mm² |
| Cross-section for connected wire, solid core, max.: | 1.5 mm² |
| Altitude: | ≤ 2000 m |
| Colour: | black |
| Design: | Installation housing; 4TE, Insta IP 20 |
| Optical function display: | green = OK; red = arrester is defective - replace |
| Protection degree: | IP20 in installed state |
| Rail: | TS 35 |
| Segment: | Power distribution |
| Suitable for: | Count-in installation (leakage current free) |
| UL 94 flammability rating: | V-0 |
| Version: | Surge protection, with remote contact |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Rated voltage (AC): | 400 V |
| Voltage type: | AC |
| Max. continuous voltage, Uc (AC): | 440 V |
| Max. continuous voltage, Uc (N-PE): | 440 V |
| Low voltage network: | Single-phase, TN, TN-S, TT |
| Discharge current In (8/20µs) N-PE: | 100 kA |
| Discharge current Imax (8/20µs) N-PE: | 100 kA |
| Discharge current In (8/20µs) wire-PE: | 25 kA |
| Discharge current Imax (8/20µs) wire-PE: | 100 kA |
| Lightning test current Iimp (10/350 µs) (L-PE): | 25 kA |
| Lightning test current, Iimp (10/350 µs) (N-PE): | 100 kA |
| Frequency range, max.: | 60 Hz |
| Frequency range, min.: | 50 Hz |
| Fuse: | 250 A gL (if back up fuse > 250 A) |
| Short-circuit current rating ISCCR: | 50 kA |
| Follow-on current extinguishing capability Ifi: | Not available due for technical reasons |
| Standards: | IEC61643-11, EN61643-11, EN 60068-2-27:2009, EN 60068-2-64:2008, EN 60068-2-6:2008 |
| Energy coordination (≤10 m): | Type I, Type II, Type III |
| Protection level UP (typ.): | ≤ 2.5 kV |
| Protection level Up at IN (L/N-PE): | ≤ 2.5 kV |
| Protection level Up at IN (N-PE): | ≤ 2.5 kV |
| Leakage current at Un: | 5 µA |
| Temporary surge voltage (over-voltage) - TOV: | 762 V |
| Number of poles: | 2 |
| Rated load current IL: | 100 A |
| Requirements category acc. to IEC 61643-11: | Type I, Type II |
| Requirements class, acc. to EN 61643-11: | T1, T2 |
| Response time: | ≤ 25 ns, ≤ 100 ns |
| Signalling contact: | 250 V 1A 1CO |
| Suitable for: | Count-in installation (leakage current free) |
| Wire connection method: | Screw connection |
| Type of connection: | Screw connection |
| Stripping length, rated connection: | 13 mm |
| Tightening torque, min.: | 2 Nm |
| Tightening torque, max.: | 3 Nm |
| Clamping range, rated connection: | 16 mm² |
| Clamping range, min.: | 6 mm² |
| Clamping range, max.: | 35 mm² |
| Wire cross-section, solid, min.: | 6 mm² |
| Wire cross-section, solid, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 6 mm² |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 35 mm² |
| Connection cross-section, stranded, min.: | 6 mm² |
| Connection cross-section, stranded, max.: | 35 mm² |
| ETIM 6.0: | EC000941 |
| ETIM 7.0: | EC000941 |
| eClass 9.0: | 27-13-08-05 |
| eClass 9.1: | 27-13-08-05 |
| eClass 10.0: | 27-13-08-05 |
| UNSPSC: | 30-21-19-22 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,166 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
