Produkt
Weidmueller
2583470000
CABTITE FR 16/8 BK
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

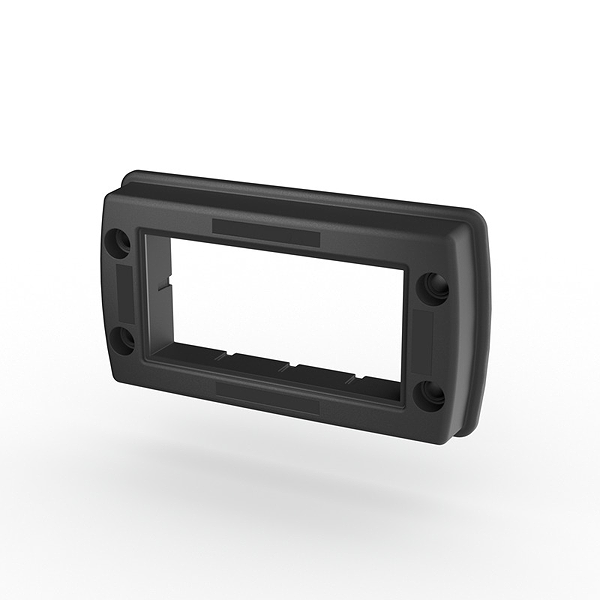

Weidmueller 2583470000
CABTITE FR 16/8 BK
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | CABTITE FR 16/8 BK |
| Order No.: | 2583470000 |
| Version: | Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 126 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66 |
| GTIN (EAN): | 4050118616866 |
| Qty.: | 1 pc(s). |
| Width: | 126 mm |
| Width (inches): | 4.961 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Height of lowest version: | 19.6 mm |
| Depth: | 19.6 mm |
| Depth (inches): | 0.772 inch |
| Mounting dimension - width: | 32 mm |
| Mounting dimension - height: | 103 mm |
| Net weight: | 51.7 g |
| Diameter: | 5.5 mm |
| Tightening torque: | 3 Nm |
| Opening width: | 46 mm |
| Opening length: | 91 mm |
| UL 94 flammability rating: | V-0 |
| Sealing element: | 2 large sealing elements or 4 small sealing elements or 1 large sealing element and 4 small sealing elements or 8 small sealing elements |
| Halogen: | No |
| Silicone: | No |
| Sealing: | TPE |
| Material: | Polyamide, glass fibre-reinforced |
| ETIM 6.0: | EC002624 |
| ETIM 7.0: | EC002624 |
| eClass 9.0: | 27-18-28-15 |
| eClass 9.1: | 27-18-92-65 |
| eClass 10.0: | 27-18-28-15 |
| ROHS: | Conform |
| Type: | CABTITE FR 16/8 BK |
| Order No.: | 2583470000 |
| Version: | Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 126 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66 |
| GTIN (EAN): | 4050118616866 |
| Qty.: | 1 pc(s). |
| Width: | 126 mm |
| Width (inches): | 4.961 inch |
| Height: | 70 mm |
| Height (inches): | 2.756 inch |
| Height of lowest version: | 19.6 mm |
| Depth: | 19.6 mm |
| Depth (inches): | 0.772 inch |
| Mounting dimension - width: | 32 mm |
| Mounting dimension - height: | 103 mm |
| Net weight: | 51.7 g |
| Diameter: | 5.5 mm |
| Tightening torque: | 3 Nm |
| Opening width: | 46 mm |
| Opening length: | 91 mm |
| UL 94 flammability rating: | V-0 |
| Sealing element: | 2 large sealing elements or 4 small sealing elements or 1 large sealing element and 4 small sealing elements or 8 small sealing elements |
| Halogen: | No |
| Silicone: | No |
| Sealing: | TPE |
| Material: | Polyamide, glass fibre-reinforced |
| ETIM 6.0: | EC002624 |
| ETIM 7.0: | EC002624 |
| eClass 9.0: | 27-18-28-15 |
| eClass 9.1: | 27-18-92-65 |
| eClass 10.0: | 27-18-28-15 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,08 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
