Produkt
Weidmueller
2568260000
IE-PS-V14M-2SC-POF-QA
Poproś o ofertę

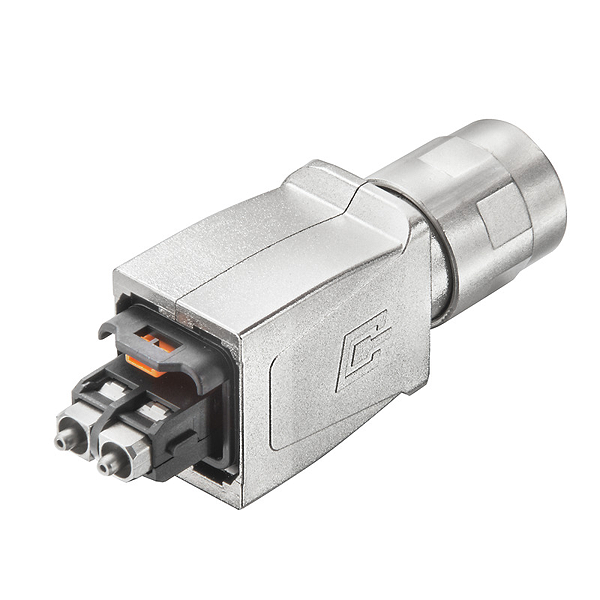

Prawa autorskie do obrazu: Weidmueller
Weidmueller 2568260000
IE-PS-V14M-2SC-POF-QA
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | IE-PS-V14M-2SC-POF-QA |
| Order No.: | 2568260000 |
| Version: | FO connector, Version 14, SC-RJ POF, IP67 |
| GTIN (EAN): | 4050118578928 |
| Qty.: | 10 pc(s). |
| Width: | 22.7 |
| Width (inches): | 0.894 inch |
| Height: | 26.8 mm |
| Height (inches): | 1.055 inch |
| Depth: | 79.9 mm |
| Depth (inches): | 3.146 inch |
| Net weight: | 55.44 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour: | Miscellaneous |
| Connection 1: | SCRJ |
| Connection 2: | Rapid connection system: screwing, cutting |
| Description of article: | Version 14, SC-RJ POF |
| Fibre type: | POF |
| Housing main material: | Zinc diecast |
| Housing material, insert: | PA, Zinc diecast |
| Insertion loss: | ≤ 1.0 dB |
| Plugging cycles: | 750 |
| Protection degree: | IP67 |
| Sheath diameter, max.: | 10 mm |
| Sheath diameter, min.: | 5 mm |
| Connector standard: | IEC 61076-3-117 Var. 14, IEC 61754-24 |
| ETIM 6.0: | EC001122 |
| ETIM 7.0: | EC001122 |
| eClass 9.0: | 19-17-01-22 |
| eClass 9.1: | 19-17-01-22 |
| eClass 10.0: | 19-17-01-22 |
| ROHS: | Conform |
| Type: | IE-PS-V14M-2SC-POF-QA |
| Order No.: | 2568260000 |
| Version: | FO connector, Version 14, SC-RJ POF, IP67 |
| GTIN (EAN): | 4050118578928 |
| Qty.: | 10 pc(s). |
| Width: | 22.7 |
| Width (inches): | 0.894 inch |
| Height: | 26.8 mm |
| Height (inches): | 1.055 inch |
| Depth: | 79.9 mm |
| Depth (inches): | 3.146 inch |
| Net weight: | 55.44 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour: | Miscellaneous |
| Connection 1: | SCRJ |
| Connection 2: | Rapid connection system: screwing, cutting |
| Description of article: | Version 14, SC-RJ POF |
| Fibre type: | POF |
| Housing main material: | Zinc diecast |
| Housing material, insert: | PA, Zinc diecast |
| Insertion loss: | ≤ 1.0 dB |
| Plugging cycles: | 750 |
| Protection degree: | IP67 |
| Sheath diameter, max.: | 10 mm |
| Sheath diameter, min.: | 5 mm |
| Connector standard: | IEC 61076-3-117 Var. 14, IEC 61754-24 |
| ETIM 6.0: | EC001122 |
| ETIM 7.0: | EC001122 |
| eClass 9.0: | 19-17-01-22 |
| eClass 9.1: | 19-17-01-22 |
| eClass 10.0: | 19-17-01-22 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,077 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
