Produkt
Weidmueller
2525780000
BLF/SLF 5.08 ZE06 OR
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

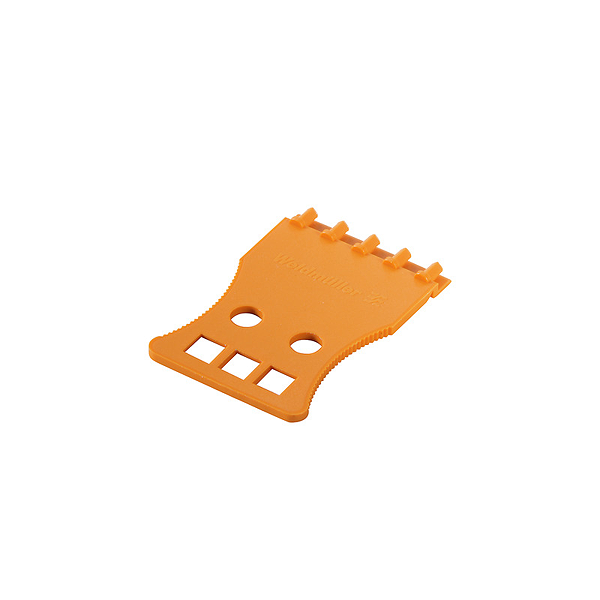

Weidmueller 2525780000
BLF/SLF 5.08 ZE06 OR
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | BLF/SLF 5.08 ZE06 OR |
| Order No.: | 2525780000 |
| Version: | PCB plug-in connector, Accessories, Strain relief, orange, Number of poles: 6 |
| GTIN (EAN): | 4050118536881 |
| Qty.: | 50 pc(s). |
| Product data: | |
| Width: | 24.8 |
| Width (inches): | 0.976 inch |
| Height: | 3.3 mm |
| Height (inches): | 0.13 inch |
| Depth: | 37 mm |
| Depth (inches): | 1.457 inch |
| Net weight: | 0.92 g |
| Insulating material: | PA 66/6 |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| VPE length: | 140 mm |
| VPE width: | 105 mm |
| VPE height: | 37 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Type: | BLF/SLF 5.08 ZE06 OR |
| Order No.: | 2525780000 |
| Version: | PCB plug-in connector, Accessories, Strain relief, orange, Number of poles: 6 |
| GTIN (EAN): | 4050118536881 |
| Qty.: | 50 pc(s). |
| Product data: | |
| Width: | 24.8 |
| Width (inches): | 0.976 inch |
| Height: | 3.3 mm |
| Height (inches): | 0.13 inch |
| Depth: | 37 mm |
| Depth (inches): | 1.457 inch |
| Net weight: | 0.92 g |
| Insulating material: | PA 66/6 |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| VPE length: | 140 mm |
| VPE width: | 105 mm |
| VPE height: | 37 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,001 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
