Produkt
Weidmueller
1884300000
HDC-KIT-HA 16.120
Poproś o ofertę

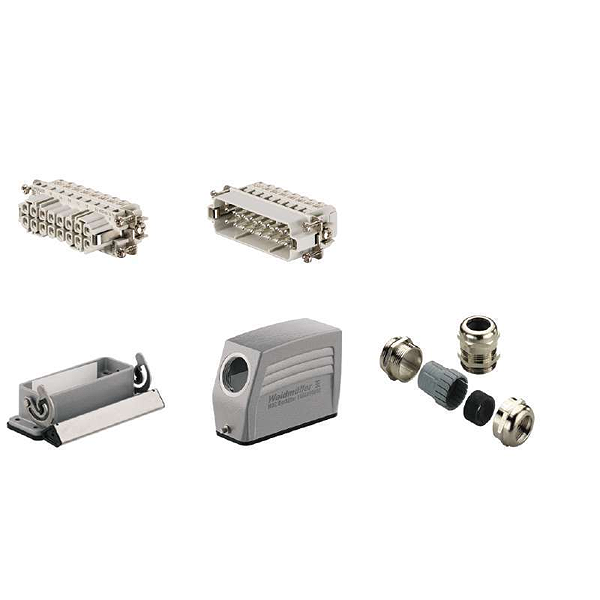

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1884300000
HDC-KIT-HA 16.120
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HDC-KIT-HA 16.120 |
| Order No.: | 1884300000 |
| GTIN (EAN): | 4032248488582 |
| Qty.: | 1 pc(s). |
| Net weight: | 430 g |
| Limit temperature: | -40 °C ... 100 °C |
| REACH SVHC: | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| Cable glands: | PG 16 |
| Connection type PE: | Screw connection |
| Material: | diecast aluminium |
| Number of poles: | 16 |
| Rated current (DIN EN 61984): | 16 A |
| Rated voltage (DIN EN 61984): | 250 V |
| Series: | HA |
| Size: | 5 |
| Blade size, slotted (screw connection): | SD 0.6 x 3.5 |
| Conductor cross-section, max.: | 2.5 mm² |
| Conductor cross-section, min.: | 0.5 mm² |
| Material: | diecast aluminium |
| Max. torque for main contact: | 0.55 Nm |
| Min. torque for main contact: | 0.5 Nm |
| Size: | 5 |
| Surface finish: | Powder coating |
| Type of connection: | Screw connection |
| Volume resistance: | ≤ 2mΩ |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 20 |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-02-92 |
| eClass 9.1: | 27-44-01-90 |
| eClass 10.0: | 27-44-02-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | HDC-KIT-HA 16.120 |
| Order No.: | 1884300000 |
| GTIN (EAN): | 4032248488582 |
| Qty.: | 1 pc(s). |
| Net weight: | 430 g |
| Limit temperature: | -40 °C ... 100 °C |
| REACH SVHC: | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| Cable glands: | PG 16 |
| Connection type PE: | Screw connection |
| Material: | diecast aluminium |
| Number of poles: | 16 |
| Rated current (DIN EN 61984): | 16 A |
| Rated voltage (DIN EN 61984): | 250 V |
| Series: | HA |
| Size: | 5 |
| Blade size, slotted (screw connection): | SD 0.6 x 3.5 |
| Conductor cross-section, max.: | 2.5 mm² |
| Conductor cross-section, min.: | 0.5 mm² |
| Material: | diecast aluminium |
| Max. torque for main contact: | 0.55 Nm |
| Min. torque for main contact: | 0.5 Nm |
| Size: | 5 |
| Surface finish: | Powder coating |
| Type of connection: | Screw connection |
| Volume resistance: | ≤ 2mΩ |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 20 |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-02-92 |
| eClass 9.1: | 27-44-01-90 |
| eClass 10.0: | 27-44-02-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Polzahl: | 16 |
| Verschraubung: | PG 16 |
| Werkstoff: | Aluminiumdruckguss |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-02-92 |
| eClass 9.1: | 27-44-01-90 |
| eClass 10.0: | 27-44-02-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Konform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,453 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
