Produkt
Weidmueller
1790020000
HDC S6 6 BAS
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

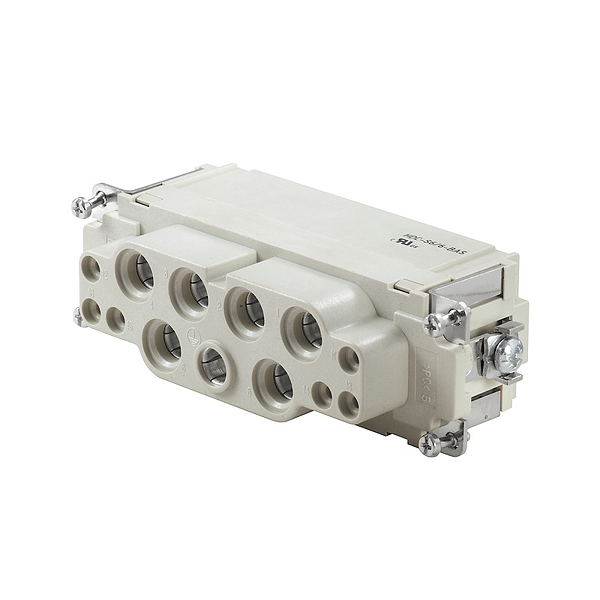

Weidmueller 1790020000
HDC S6 6 BAS
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HDC S6 6 BAS |
| Order No.: | 1790020000 |
| Version: | HDC insert, Female, 690 V, 100 A, Number of poles: 12, Axial screw connection, Size: 8 |
| GTIN (EAN): | 4032248212088 |
| Qty.: | 1 pc(s). |
| Width: | 34 |
| Width (inches): | 1.339 inch |
| Height: | 50.8 mm |
| Height (inches): | 2 inch |
| Depth: | 111 mm |
| Depth (inches): | 4.37 inch |
| Net weight: | 300 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Height of socket: | 50.8 mm |
| Total length base: | 111 mm |
| Insulating material: | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group: | IIIa |
| Material: | Copper alloy |
| Number of poles: | 12 |
| Number of power contacts: | 6 |
| Number of signal contacts: | 6 |
| Plugging cycles, silver: | ≥ 500 |
| Pollution severity: | 3 |
| Rated current (DIN EN 61984): | 100 A |
| Rated impulse voltage (DIN EN 61984): | 8 kV |
| Rated voltage (DIN EN 61984): | 690 V |
| Rated voltage according to UL/CSA: | 600 V AC/DC |
| Series: | MixMate |
| Size: | 8 |
| Surface finish: | Silver passivated |
| Type: | Female |
| UL 94 flammability rating: | V-0 |
| Volume resistance: | ≤ 1 mΩ |
| Connection type PE: | Screw connection |
| Rated cross-section: | 35 mm² |
| Stripping length PE connection: | 8 mm |
| Tightening torque, max. PE connection: | 8 Nm |
| Tightening torque, min. PE connection: | 6 Nm |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Wire cross section, AWG (PE), max.: | AWG 2 |
| Wire cross section, AWG (PE), min.: | AWG 6 |
| Clamping range, power contact, max.: | 35 mm² |
| Clamping range, power contact, min.: | 16 mm² |
| Number of poles, performance contact: | 6 |
| Rated current (DIN EN 61984), power contact: | 100 A |
| Rated impulse voltage (DIN EN 61984), power contact: | 8 kV |
| Rated voltage (DIN EN 61984), power contact: | 690 V |
| Stripping length, performance contact: | 13 mm |
| Tightening torque, power contact, max.: | 8 Nm |
| Tightening torque, power contact, min.: | 6 Nm |
| Type of connection, power contact: | Axial screw connection |
| AF size: | SD 0.6 x 3.5 |
| Clamping range, signal contact, max.: | 2.5 mm² |
| Clamping range, signal contact, min.: | 0.5 mm² |
| Number of poles, signal: | 6 |
| Rated current (DIN EN 61984), signal: | 16 A |
| Rated impulse voltage (DIN EN 61984), signal: | 6 kV |
| Rated voltage (DIN EN 61984), signal contact: | 400 V |
| Stripping length, signal: | 12 mm |
| Tightening torque, signal contact, max.: | 0.8 Nm |
| Tightening torque, signal contact, min.: | 0.4 Nm |
| Type of connection, signal: | Screw connection |
| Clamping screw: | M 7 x 0.75 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Material: | Copper alloy |
| Size: | 8 |
| Stripping length, rated connection: | 13 mm |
| Surface finish: | Silver passivated |
| Type of connection: | Axial screw connection |
| Volume resistance: | ≤ 1 mΩ |
| Wire connection cross section AWG, max.: | AWG 2 |
| Wire connection cross section AWG, min.: | AWG 6 |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| ETIM 6.0: | EC000438 |
| ETIM 7.0: | EC000438 |
| eClass 9.0: | 27-44-02-05 |
| eClass 9.1: | 27-44-02-05 |
| eClass 10.0: | 27-44-02-05 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | HDC S6 6 BAS |
| Order No.: | 1790020000 |
| Version: | HDC insert, Female, 690 V, 100 A, Number of poles: 12, Axial screw connection, Size: 8 |
| GTIN (EAN): | 4032248212088 |
| Qty.: | 1 pc(s). |
| Width: | 34 |
| Width (inches): | 1.339 inch |
| Height: | 50.8 mm |
| Height (inches): | 2 inch |
| Depth: | 111 mm |
| Depth (inches): | 4.37 inch |
| Net weight: | 300 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Height of socket: | 50.8 mm |
| Total length base: | 111 mm |
| Insulating material: | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group: | IIIa |
| Material: | Copper alloy |
| Number of poles: | 12 |
| Number of power contacts: | 6 |
| Number of signal contacts: | 6 |
| Plugging cycles, silver: | ≥ 500 |
| Pollution severity: | 3 |
| Rated current (DIN EN 61984): | 100 A |
| Rated impulse voltage (DIN EN 61984): | 8 kV |
| Rated voltage (DIN EN 61984): | 690 V |
| Rated voltage according to UL/CSA: | 600 V AC/DC |
| Series: | MixMate |
| Size: | 8 |
| Surface finish: | Silver passivated |
| Type: | Female |
| UL 94 flammability rating: | V-0 |
| Volume resistance: | ≤ 1 mΩ |
| Connection type PE: | Screw connection |
| Rated cross-section: | 35 mm² |
| Stripping length PE connection: | 8 mm |
| Tightening torque, max. PE connection: | 8 Nm |
| Tightening torque, min. PE connection: | 6 Nm |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Wire cross section, AWG (PE), max.: | AWG 2 |
| Wire cross section, AWG (PE), min.: | AWG 6 |
| Clamping range, power contact, max.: | 35 mm² |
| Clamping range, power contact, min.: | 16 mm² |
| Number of poles, performance contact: | 6 |
| Rated current (DIN EN 61984), power contact: | 100 A |
| Rated impulse voltage (DIN EN 61984), power contact: | 8 kV |
| Rated voltage (DIN EN 61984), power contact: | 690 V |
| Stripping length, performance contact: | 13 mm |
| Tightening torque, power contact, max.: | 8 Nm |
| Tightening torque, power contact, min.: | 6 Nm |
| Type of connection, power contact: | Axial screw connection |
| AF size: | SD 0.6 x 3.5 |
| Clamping range, signal contact, max.: | 2.5 mm² |
| Clamping range, signal contact, min.: | 0.5 mm² |
| Number of poles, signal: | 6 |
| Rated current (DIN EN 61984), signal: | 16 A |
| Rated impulse voltage (DIN EN 61984), signal: | 6 kV |
| Rated voltage (DIN EN 61984), signal contact: | 400 V |
| Stripping length, signal: | 12 mm |
| Tightening torque, signal contact, max.: | 0.8 Nm |
| Tightening torque, signal contact, min.: | 0.4 Nm |
| Type of connection, signal: | Screw connection |
| Clamping screw: | M 7 x 0.75 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Material: | Copper alloy |
| Size: | 8 |
| Stripping length, rated connection: | 13 mm |
| Surface finish: | Silver passivated |
| Type of connection: | Axial screw connection |
| Volume resistance: | ≤ 1 mΩ |
| Wire connection cross section AWG, max.: | AWG 2 |
| Wire connection cross section AWG, min.: | AWG 6 |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| ETIM 6.0: | EC000438 |
| ETIM 7.0: | EC000438 |
| eClass 9.0: | 27-44-02-05 |
| eClass 9.1: | 27-44-02-05 |
| eClass 10.0: | 27-44-02-05 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,30 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
