Produkt
Weidmueller
1789990000
HDC S4 SAS
Poproś o ofertę

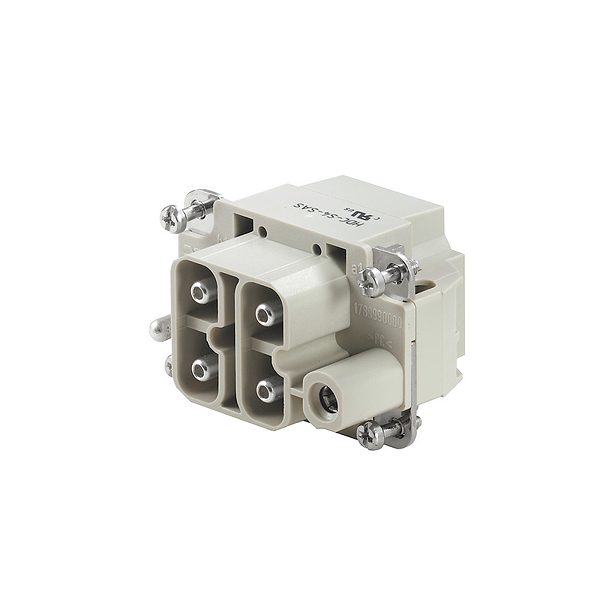

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1789990000
HDC S4 SAS
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | HDC S4 SAS |
| Order No.: | 1789990000 |
| Version: | HDC insert, Pin, 1000 V, 40 A, Number of poles: 4, Axial screw connection, Size: 3 |
| GTIN (EAN): | 4032248212057 |
| Qty.: | 1 pc(s). |
| Width: | 34 |
| Width (inches): | 1.339 inch |
| Height: | 41.3 mm |
| Height (inches): | 1.626 inch |
| Depth: | 51 mm |
| Depth (inches): | 2.008 inch |
| Net weight: | 78.7 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Height of plug: | 41.3 mm |
| Total length base: | 51 mm |
| Conductor cross-section: | 6 mm² |
| Insulating material: | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group: | IIIa |
| Material: | Copper alloy |
| Number of poles: | 4 |
| Number of power contacts: | 4 |
| Plugging cycles, silver: | ≥ 500 |
| Pollution severity: | 3 |
| Rated current (DIN EN 61984): | 40 A |
| Rated impulse voltage (DIN EN 61984): | 8 kV |
| Rated voltage (DIN EN 61984): | 1,000 V |
| Rated voltage according to UL/CSA: | 600 V AC/DC |
| Series: | MixMate |
| Size: | 3 |
| Surface finish: | Silver passivated |
| Type: | Pin |
| UL 94 flammability rating: | V-0 |
| Volume resistance: | ≤ 1 mΩ |
| Blade size, slotted (PE connection): | SD 0.6 x 3.5 |
| Connection type PE: | Screw connection |
| Fixing screw: | M 4 |
| Rated cross-section: | 6 mm² |
| Stripping length PE connection: | 8 mm |
| Tightening torque, max. PE connection: | 0.8 Nm |
| Tightening torque, min. PE connection: | 0.5 Nm |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire cross section, AWG (PE), max.: | AWG 11 |
| Wire cross section, AWG (PE), min.: | AWG 14 |
| Wire cross-section, solid, max.: | 6 mm² |
| Wire cross-section, solid, min.: | 2.5 mm² |
| Clamping range, power contact, max.: | 6 mm² |
| Clamping range, power contact, min.: | 2.5 mm² |
| Number of poles, performance contact: | 4 |
| Rated current (DIN EN 61984), power contact: | 40 A |
| Rated impulse voltage (DIN EN 61984), power contact: | 8 kV |
| Rated voltage (DIN EN 61984), power contact: | 1,000 V |
| Stripping length, performance contact: | 8 mm |
| Tightening torque, power contact, max.: | 1.7 Nm |
| Tightening torque, power contact, min.: | 1.1 Nm |
| Type of connection, power contact: | Axial screw connection |
| Clamping screw: | M 7 x 0.75 mm |
| Conductor cross-section, max.: | 6 mm² |
| Conductor cross-section, min.: | 2.5 mm² |
| Material: | Copper alloy |
| Size: | 3 |
| Stripping length, rated connection: | 8 mm |
| Surface finish: | Silver passivated |
| Type of connection: | Axial screw connection |
| Volume resistance: | ≤ 1 mΩ |
| Wire connection cross section AWG, max.: | AWG 11 |
| Wire connection cross section AWG, min.: | AWG 14 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire cross-section, solid, max.: | 6 mm² |
| Wire cross-section, solid, min.: | 2.5 mm² |
| ETIM 6.0: | EC000438 |
| ETIM 7.0: | EC000438 |
| eClass 9.0: | 27-44-02-05 |
| eClass 9.1: | 27-44-02-05 |
| eClass 10.0: | 27-44-02-05 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | HDC S4 SAS |
| Order No.: | 1789990000 |
| Version: | HDC insert, Pin, 1000 V, 40 A, Number of poles: 4, Axial screw connection, Size: 3 |
| GTIN (EAN): | 4032248212057 |
| Qty.: | 1 pc(s). |
| Width: | 34 |
| Width (inches): | 1.339 inch |
| Height: | 41.3 mm |
| Height (inches): | 1.626 inch |
| Depth: | 51 mm |
| Depth (inches): | 2.008 inch |
| Net weight: | 78.7 g |
| Limit temperature: | -40 °C ... 125 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Height of plug: | 41.3 mm |
| Total length base: | 51 mm |
| Conductor cross-section: | 6 mm² |
| Insulating material: | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group: | IIIa |
| Material: | Copper alloy |
| Number of poles: | 4 |
| Number of power contacts: | 4 |
| Plugging cycles, silver: | ≥ 500 |
| Pollution severity: | 3 |
| Rated current (DIN EN 61984): | 40 A |
| Rated impulse voltage (DIN EN 61984): | 8 kV |
| Rated voltage (DIN EN 61984): | 1,000 V |
| Rated voltage according to UL/CSA: | 600 V AC/DC |
| Series: | MixMate |
| Size: | 3 |
| Surface finish: | Silver passivated |
| Type: | Pin |
| UL 94 flammability rating: | V-0 |
| Volume resistance: | ≤ 1 mΩ |
| Blade size, slotted (PE connection): | SD 0.6 x 3.5 |
| Connection type PE: | Screw connection |
| Fixing screw: | M 4 |
| Rated cross-section: | 6 mm² |
| Stripping length PE connection: | 8 mm |
| Tightening torque, max. PE connection: | 0.8 Nm |
| Tightening torque, min. PE connection: | 0.5 Nm |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire cross section, AWG (PE), max.: | AWG 11 |
| Wire cross section, AWG (PE), min.: | AWG 14 |
| Wire cross-section, solid, max.: | 6 mm² |
| Wire cross-section, solid, min.: | 2.5 mm² |
| Clamping range, power contact, max.: | 6 mm² |
| Clamping range, power contact, min.: | 2.5 mm² |
| Number of poles, performance contact: | 4 |
| Rated current (DIN EN 61984), power contact: | 40 A |
| Rated impulse voltage (DIN EN 61984), power contact: | 8 kV |
| Rated voltage (DIN EN 61984), power contact: | 1,000 V |
| Stripping length, performance contact: | 8 mm |
| Tightening torque, power contact, max.: | 1.7 Nm |
| Tightening torque, power contact, min.: | 1.1 Nm |
| Type of connection, power contact: | Axial screw connection |
| Clamping screw: | M 7 x 0.75 mm |
| Conductor cross-section, max.: | 6 mm² |
| Conductor cross-section, min.: | 2.5 mm² |
| Material: | Copper alloy |
| Size: | 3 |
| Stripping length, rated connection: | 8 mm |
| Surface finish: | Silver passivated |
| Type of connection: | Axial screw connection |
| Volume resistance: | ≤ 1 mΩ |
| Wire connection cross section AWG, max.: | AWG 11 |
| Wire connection cross section AWG, min.: | AWG 14 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 2.5 mm² |
| Wire cross-section, solid, max.: | 6 mm² |
| Wire cross-section, solid, min.: | 2.5 mm² |
| ETIM 6.0: | EC000438 |
| ETIM 7.0: | EC000438 |
| eClass 9.0: | 27-44-02-05 |
| eClass 9.1: | 27-44-02-05 |
| eClass 10.0: | 27-44-02-05 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,084 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
