1750840000
BLIDC 3.50/07/180 SN OR BX
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

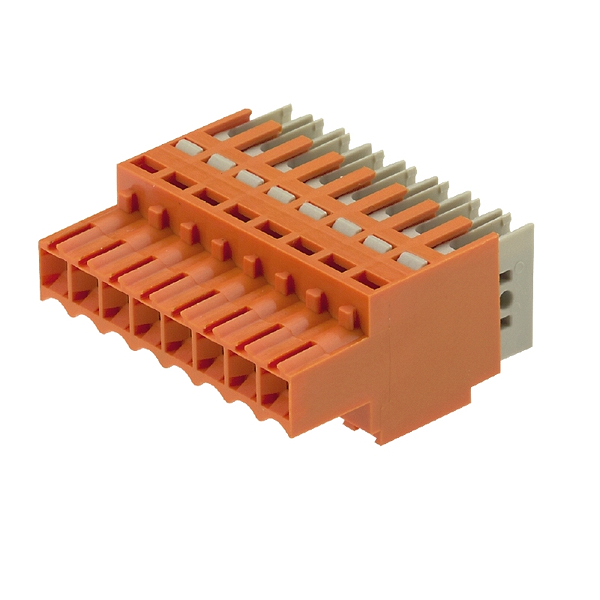

Weidmueller 1750840000
BLIDC 3.50/07/180 SN OR BX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | BLIDC 3.50/07/180 SN OR BX |
| Order No.: | 1750840000 |
| Version: | PCB plug-in connector, female plug, 3.50 mm, Number of poles: 7, 90°/270°, IDC terminal, Clamping range, max. : 0.5 mm², Box |
| GTIN (EAN): | 4032248146130 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Width: | 24.5 |
| Width (inches): | 0.965 inch |
| Height: | 12.5 mm |
| Height (inches): | 0.492 inch |
| Depth: | 21.2 mm |
| Depth (inches): | 0.835 inch |
| Net weight: | 6.48 g |
| Product family: | OMNIMATE Signal - series BL/SL 3.50 |
| Type of connection: | Field connection |
| Wire connection method: | IDC terminal |
| Pitch in mm (P): | 3.5 mm |
| Pitch in inches (P): | 0.138 inch |
| Conductor outlet direction: | 90°/270° |
| Number of poles: | 7 |
| L1 in mm: | 21 mm |
| L1 in inches: | 0.827 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Rated cross-section: | 0.5 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Screwdriver blade: | 0.4 x 2.5 |
| Screwdriver blade standard: | DIN 5264 |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 2 N |
| Pulling force/pole, max.: | 2 N |
| Insulating material: | PBT |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 80 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 80 °C |
| Clamping range, min.: | 0.32 mm² |
| Clamping range, max.: | 0.5 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 20 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 0.5 mm² |
| Flexible, min. H05(07) V-K: | 0.2 mm² |
| Flexible, max. H05(07) V-K: | 0.5 mm² |
| Outer diameter of insulation, max.: | 2.1 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 0.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 6 A |
| Rated current, max. number of poles (Tu=20°C): | 6 A |
| Rated current, min. number of poles (Tu=40°C): | 6 A |
| Rated current, max. number of poles (Tu=40°C): | 5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Short-time withstand current resistance: | 3 x 1s with 60 A |
| Certificate No. (CSA): | 200039-1068660 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 7 A |
| Rated current (Use group D / CSA): | 7 A |
| Wire cross-section, AWG, min.: | AWG 22 |
| Wire cross-section, AWG, max.: | AWG 20 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 7 A |
| Rated current (Use group D / UL 1059): | 7 A |
| Wire cross-section, AWG, min.: | AWG 22 |
| Wire cross-section, AWG, max.: | AWG 20 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 35 mm |
| VPE width: | 130 mm |
| VPE height: | 155 mm |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | BLIDC 3.50/07/180 SN OR BX |
| Order No.: | 1750840000 |
| Version: | PCB plug-in connector, female plug, 3.50 mm, Number of poles: 7, 90°/270°, IDC terminal, Clamping range, max. : 0.5 mm², Box |
| GTIN (EAN): | 4032248146130 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Width: | 24.5 |
| Width (inches): | 0.965 inch |
| Height: | 12.5 mm |
| Height (inches): | 0.492 inch |
| Depth: | 21.2 mm |
| Depth (inches): | 0.835 inch |
| Net weight: | 6.48 g |
| Product family: | OMNIMATE Signal - series BL/SL 3.50 |
| Type of connection: | Field connection |
| Wire connection method: | IDC terminal |
| Pitch in mm (P): | 3.5 mm |
| Pitch in inches (P): | 0.138 inch |
| Conductor outlet direction: | 90°/270° |
| Number of poles: | 7 |
| L1 in mm: | 21 mm |
| L1 in inches: | 0.827 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Rated cross-section: | 0.5 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Screwdriver blade: | 0.4 x 2.5 |
| Screwdriver blade standard: | DIN 5264 |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 2 N |
| Pulling force/pole, max.: | 2 N |
| Insulating material: | PBT |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 80 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 80 °C |
| Clamping range, min.: | 0.32 mm² |
| Clamping range, max.: | 0.5 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 20 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 0.5 mm² |
| Flexible, min. H05(07) V-K: | 0.2 mm² |
| Flexible, max. H05(07) V-K: | 0.5 mm² |
| Outer diameter of insulation, max.: | 2.1 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 0.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 6 A |
| Rated current, max. number of poles (Tu=20°C): | 6 A |
| Rated current, min. number of poles (Tu=40°C): | 6 A |
| Rated current, max. number of poles (Tu=40°C): | 5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 160 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 2.5 kV |
| Short-time withstand current resistance: | 3 x 1s with 60 A |
| Certificate No. (CSA): | 200039-1068660 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 7 A |
| Rated current (Use group D / CSA): | 7 A |
| Wire cross-section, AWG, min.: | AWG 22 |
| Wire cross-section, AWG, max.: | AWG 20 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 7 A |
| Rated current (Use group D / UL 1059): | 7 A |
| Wire cross-section, AWG, min.: | AWG 22 |
| Wire cross-section, AWG, max.: | AWG 20 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 35 mm |
| VPE width: | 130 mm |
| VPE height: | 155 mm |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
