Produkt

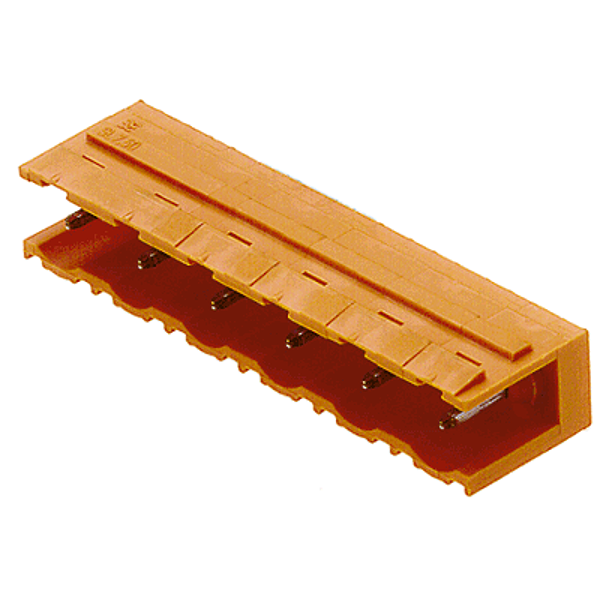

Article image 1650510000
Manufacturer logo

Weidmueller

1650510000

SL 7.50/07/90 3.2SN GY BX

Poproś o ofertę
Zamknij
Poproś o ofertę
Article image 1650510000
Prawa autorskie do obrazu: Weidmueller

Weidmueller 1650510000

SL 7.50/07/90 3.2SN GY BX

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

Parametry techniczne

Type: SL 7.50/07/90 3.2SN GY BX
Order No.: 1650510000
Version: PCB plug-in connector, male header, open side, THT solder connection, 7.50 mm, Number of poles: 7, 90°, Solder pin length (l): 3.2 mm, tinned, Pebble grey, Box
GTIN (EAN): 4008190298265
Qty.: 50 pc(s).
Packaging: Box
Height: 11.7 mm
Height (inches): 0.461 inch
Height of lowest version: 8.5 mm
Depth: 12 mm
Depth (inches): 0.472 inch
Net weight: 3.74 g
Product family: OMNIMATE Signal - series BL/SL 7.50
Type of connection: Board connection
Mounting onto the PCB: THT solder connection
Pitch in mm (P): 7.5 mm
Pitch in inches (P): 0.295 inch
Outgoing elbow: 90°
Number of poles: 7
Number of solder pins per pole: 1
Solder pin length (l): 3.2 mm
Tolerance of solder pin position: ± 0.1 mm
Solder eyelet hole diameter (D): 1.3 mm
Solder eyelet hole diameter tolerance (D): + 0,1 mm
L1 in mm: 45 mm
L1 in inches: 1.772 inch
Number of rows: 1
Pin series quantity: 1
Touch-safe protection acc. to DIN VDE 57 106: Safe from finger touch, plugged
Volume resistance: 4.50 mΩ
Can be coded: Yes
Insulating material: PBT
Colour: Pebble grey
Colour chart (similar): RAL 7032
Insulating material group: IIIa
Comparative Tracking Index (CTI): ≥ 200
UL 94 flammability rating: V-0
GWFI: 960 °C
Contact material: CuSn
Contact surface: tinned
Storage temperature, min.: -25 °C
Storage temperature, max.: 50 °C
Max. relative humidity during storage: 70 %
Operating temperature, min.: -50 °C
Operating temperature, max.: 100 °C
Temperature range, installation, min.: -25 °C
Temperature range, installation, max.: 100 °C
tested acc. to standard: IEC 60664-1, IEC 61984
Rated current, min. number of poles (Tu=20°C): 18.5 A
Rated current, max. number of poles (Tu=20°C): 17 A
Rated current, min. number of poles (Tu=40°C): 16 A
Rated current, max. number of poles (Tu=40°C): 14.5 A
Rated voltage for surge voltage class / pollution degree II/2: 800 V
Rated voltage for surge voltage class / pollution degree III/2: 630 V
Rated voltage for surge voltage class / pollution degree III/3: 500 V
Rated impulse voltage for surge voltage class/ pollution degree II/2: 6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2: 6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3: 6 kV
Short-time withstand current resistance: 3 x 1s with 120 A
Certificate No. (CSA): 200039-1121690
Rated voltage (Use group B / CSA): 300 V
Rated voltage (Use group D / CSA): 300 V
Rated current (Use group B / CSA): 15 A
Rated current (Use group D / CSA): 10 A
Reference to approval values: Specifications are maximum values, details - see approval certificate.
Certificate No. (UR): E60693
Rated voltage (Use group B / UL 1059): 300 V
Rated voltage (Use group D / UL 1059): 300 V
Rated current (Use group B / UL 1059): 15 A
Rated current (Use group D / UL 1059): 10 A
Reference to approval values: Specifications are maximum values, details - see approval certificate.
Packaging: Box
VPE length: 45 mm
VPE width: 65 mm
VPE height: 220 mm
ETIM 6.0: EC002637
ETIM 7.0: EC002637
eClass 9.0: 27-44-04-02
eClass 9.1: 27-44-04-02
eClass 10.0: 27-44-04-02
UNSPSC: 30-21-18-10
IPC conformity: Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
ROHS: Conform
Type: SL 7.50/07/90 3.2SN GY BX
Order No.: 1650510000
Version: PCB plug-in connector, male header, open side, THT solder connection, 7.50 mm, Number of poles: 7, 90°, Solder pin length (l): 3.2 mm, tinned, Pebble grey, Box
GTIN (EAN): 4008190298265
Qty.: 50 pc(s).
Packaging: Box
Height: 11.7 mm
Height (inches): 0.461 inch
Height of lowest version: 8.5 mm
Depth: 12 mm
Depth (inches): 0.472 inch
Net weight: 3.74 g
Product family: OMNIMATE Signal - series BL/SL 7.50
Type of connection: Board connection
Mounting onto the PCB: THT solder connection
Pitch in mm (P): 7.5 mm
Pitch in inches (P): 0.295 inch
Outgoing elbow: 90°
Number of poles: 7
Number of solder pins per pole: 1
Solder pin length (l): 3.2 mm
Tolerance of solder pin position: ± 0.1 mm
Solder eyelet hole diameter (D): 1.3 mm
Solder eyelet hole diameter tolerance (D): + 0,1 mm
L1 in mm: 45 mm
L1 in inches: 1.772 inch
Number of rows: 1
Pin series quantity: 1
Touch-safe protection acc. to DIN VDE 57 106: Safe from finger touch, plugged
Volume resistance: 4.50 mΩ
Can be coded: Yes
Insulating material: PBT
Colour: Pebble grey
Colour chart (similar): RAL 7032
Insulating material group: IIIa
Comparative Tracking Index (CTI): ≥ 200
UL 94 flammability rating: V-0
GWFI: 960 °C
Contact material: CuSn
Contact surface: tinned
Storage temperature, min.: -25 °C
Storage temperature, max.: 50 °C
Max. relative humidity during storage: 70 %
Operating temperature, min.: -50 °C
Operating temperature, max.: 100 °C
Temperature range, installation, min.: -25 °C
Temperature range, installation, max.: 100 °C
tested acc. to standard: IEC 60664-1, IEC 61984
Rated current, min. number of poles (Tu=20°C): 18.5 A
Rated current, max. number of poles (Tu=20°C): 17 A
Rated current, min. number of poles (Tu=40°C): 16 A
Rated current, max. number of poles (Tu=40°C): 14.5 A
Rated voltage for surge voltage class / pollution degree II/2: 800 V
Rated voltage for surge voltage class / pollution degree III/2: 630 V
Rated voltage for surge voltage class / pollution degree III/3: 500 V
Rated impulse voltage for surge voltage class/ pollution degree II/2: 6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2: 6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3: 6 kV
Short-time withstand current resistance: 3 x 1s with 120 A
Certificate No. (CSA): 200039-1121690
Rated voltage (Use group B / CSA): 300 V
Rated voltage (Use group D / CSA): 300 V
Rated current (Use group B / CSA): 15 A
Rated current (Use group D / CSA): 10 A
Reference to approval values: Specifications are maximum values, details - see approval certificate.
Certificate No. (UR): E60693
Rated voltage (Use group B / UL 1059): 300 V
Rated voltage (Use group D / UL 1059): 300 V
Rated current (Use group B / UL 1059): 15 A
Rated current (Use group D / UL 1059): 10 A
Reference to approval values: Specifications are maximum values, details - see approval certificate.
Packaging: Box
VPE length: 45 mm
VPE width: 65 mm
VPE height: 220 mm
ETIM 6.0: EC002637
ETIM 7.0: EC002637
eClass 9.0: 27-44-04-02
eClass 9.1: 27-44-04-02
eClass 10.0: 27-44-04-02
UNSPSC: 30-21-18-10
IPC conformity: Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
ROHS: Conform

Parametry logistyczne

ECCN:
Kraj pochodzenia:
EAN:
Waga: 0,004 kg
Długość: 0,00 m
Szerokość: 0,00 m
Wysokość: 0,00 m
