Produkt
Weidmueller
1624920000
SL 7.62/02/180B 4.5SN BK BX
Poproś o ofertę

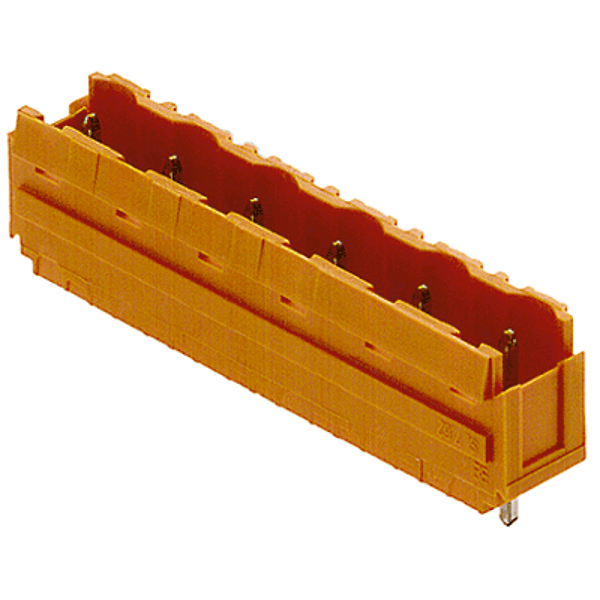

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1624920000
SL 7.62/02/180B 4.5SN BK BX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SL 7.62/02/180B 4.5SN BK BX |
| Order No.: | 1624920000 |
| Version: | PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 7.62 mm, Number of poles: 2, 180°, Solder pin length (l): 4.5 mm, tinned, black, Box |
| GTIN (EAN): | 4008190195977 |
| Qty.: | 100 pc(s). |
| Packaging: | Box |
| Net weight: | 1.12 g |
| Product family: | OMNIMATE Signal - series BL/SL 7.62 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Outgoing elbow: | 180° |
| Number of poles: | 2 |
| Number of solder pins per pole: | 1 |
| Solder pin length (l): | 4.5 mm |
| Tolerance of solder pin position: | ± 0.1 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 7.62 mm |
| L1 in inches: | 0.3 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Volume resistance: | 4.50 mΩ |
| Can be coded: | Yes |
| Pulling force/pole, max.: | 2 N |
| Insulating material: | PBT |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 18.5 A |
| Rated current, max. number of poles (Tu=20°C): | 17 A |
| Rated current, min. number of poles (Tu=40°C): | 16 A |
| Rated current, max. number of poles (Tu=40°C): | 14.5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 800 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 630 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 500 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 15 A |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 15 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 170 mm |
| VPE width: | 70 mm |
| VPE height: | 42 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SL 7.62/02/180B 4.5SN BK BX |
| Order No.: | 1624920000 |
| Version: | PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 7.62 mm, Number of poles: 2, 180°, Solder pin length (l): 4.5 mm, tinned, black, Box |
| GTIN (EAN): | 4008190195977 |
| Qty.: | 100 pc(s). |
| Packaging: | Box |
| Net weight: | 1.12 g |
| Product family: | OMNIMATE Signal - series BL/SL 7.62 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Outgoing elbow: | 180° |
| Number of poles: | 2 |
| Number of solder pins per pole: | 1 |
| Solder pin length (l): | 4.5 mm |
| Tolerance of solder pin position: | ± 0.1 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 7.62 mm |
| L1 in inches: | 0.3 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Volume resistance: | 4.50 mΩ |
| Can be coded: | Yes |
| Pulling force/pole, max.: | 2 N |
| Insulating material: | PBT |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 18.5 A |
| Rated current, max. number of poles (Tu=20°C): | 17 A |
| Rated current, min. number of poles (Tu=40°C): | 16 A |
| Rated current, max. number of poles (Tu=40°C): | 14.5 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 800 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 630 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 500 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 15 A |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 15 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 170 mm |
| VPE width: | 70 mm |
| VPE height: | 42 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,001 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
