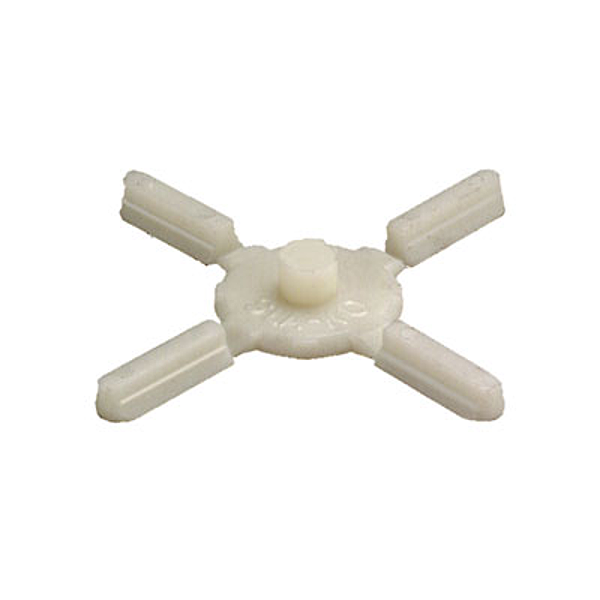

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1323560000
SLA KO
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SLA KO |
| Order No.: | 1323560000 |
| Version: | PCB plug-in connector, Accessories, Coding element, white, Number of poles: 1 |
| GTIN (EAN): | 4008190428389 |
| Qty.: | 100 pc(s). |
| Product data: | |
| Packaging: | Box |
| Net weight: | 0.203 g |
| Insulating material: | PA |
| Colour: | white |
| Colour chart (similar): | RAL 9010 |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Packaging: | Box |
| VPE length: | 20 mm |
| VPE width: | 80 mm |
| VPE height: | 80 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SLA KO |
| Order No.: | 1323560000 |
| Version: | PCB plug-in connector, Accessories, Coding element, white, Number of poles: 1 |
| GTIN (EAN): | 4008190428389 |
| Qty.: | 100 pc(s). |
| Product data: | |
| Packaging: | Box |
| Net weight: | 0.203 g |
| Insulating material: | PA |
| Colour: | white |
| Colour chart (similar): | RAL 9010 |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Packaging: | Box |
| VPE length: | 20 mm |
| VPE width: | 80 mm |
| VPE height: | 80 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
