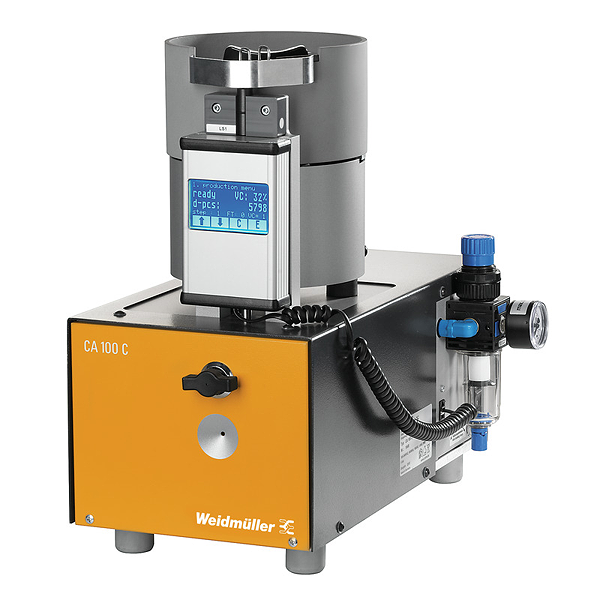

Weidmueller 1266370000
CA 100 C
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | CA 100 C |
| Order No.: | 1266370000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118056303 |
| Qty.: | 1 pc(s). |
| Width: | 410 mm |
| Width (inches): | 16.142 inch |
| Height: | 390 mm |
| Height (inches): | 15.354 inch |
| Depth: | 280 mm |
| Depth (inches): | 11.024 inch |
| Weight: | 23 kg |
| Net weight: | 28,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Compressed-air connection: | 5 bar |
| Consumables: | loose cable lugs, With and without plastic collar |
| Crimping length: | 6/8 mm |
| Drive: | Electropneumatic |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Length of wire-end ferrule: | 12/14 mm |
| Pulse time: | approx. 1.5 s |
| Stripping range: | 0.14 - 0.34 mm² |
| Wire end ferrules cross-section, max.: | 0.34 mm² |
| Wire end ferrules cross-section, min.: | 0.14 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| UNSPSC: | 23-17-16-04 |
| ROHS: | Conform |
| Type: | CA 100 C |
| Order No.: | 1266370000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118056303 |
| Qty.: | 1 pc(s). |
| Width: | 410 mm |
| Width (inches): | 16.142 inch |
| Height: | 390 mm |
| Height (inches): | 15.354 inch |
| Depth: | 280 mm |
| Depth (inches): | 11.024 inch |
| Weight: | 23 kg |
| Net weight: | 28,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Compressed-air connection: | 5 bar |
| Consumables: | loose cable lugs, With and without plastic collar |
| Crimping length: | 6/8 mm |
| Drive: | Electropneumatic |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Length of wire-end ferrule: | 12/14 mm |
| Pulse time: | approx. 1.5 s |
| Stripping range: | 0.14 - 0.34 mm² |
| Wire end ferrules cross-section, max.: | 0.34 mm² |
| Wire end ferrules cross-section, min.: | 0.14 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| UNSPSC: | 23-17-16-04 |
| ROHS: | Conform |
