Produkt
Weidmueller
1068840000
IE-CD-V14MHYB-10P-C-MA
Poproś o ofertę

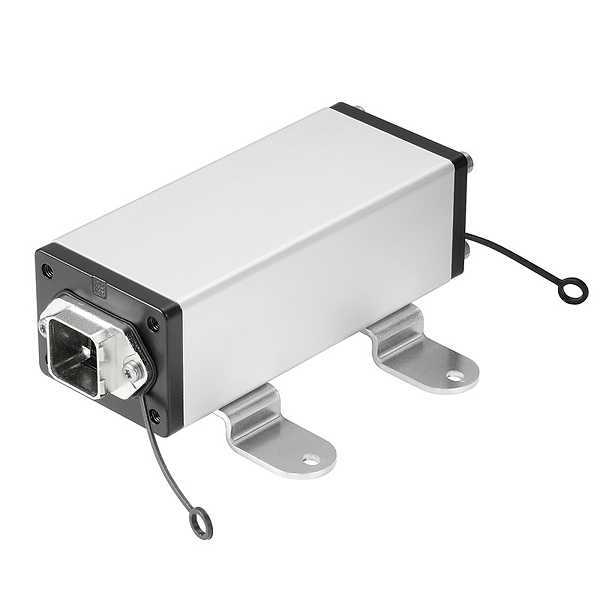

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1068840000
IE-CD-V14MHYB-10P-C-MA
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | IE-CD-V14MHYB-10P-C-MA |
| Order No.: | 1068840000 |
| Version: | Junction box, FreeCon, Hybrid, Plug-in connector, IP65 |
| GTIN (EAN): | 4032248823932 |
| Qty.: | 1 pc(s). |
| Width: | 41 |
| Width (inches): | 1.614 inch |
| Height: | 52 mm |
| Height (inches): | 2.047 inch |
| Depth: | 142 mm |
| Depth (inches): | 5.591 inch |
| Net weight: | 652.82 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 75 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...75 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour: | silver |
| Housing main material: | Aluminium profile, Cover: die-cast zinc, nickel plated |
| Protection degree: | IP65 |
| UL 94 flammability rating: | V-0 |
| Certificate no. (cULus): | E316369 |
| Connector standard: | IEC 61076-3-117 Var. 14 |
| Contact material (hybrid connector): | Copper alloy |
| Contact resistance (hybrid connector): | ≤ 10 mΩ |
| Contact surface (hybrid connector): | Gold over nickel |
| Housing base material (hybrid connector): | Zinc diecast (flange), PA 66 |
| Material of seal (hybrid connector): | NBR |
| Plugging cycles (hybrid connector): | 500 |
| Pole count: | 10 |
| Protection degree (hybrid connector): | IP65 |
| Rated current (hybrid connector): | 3 A per contact |
| Rated voltage (DIN EN 61984) (hybrid connector): | 24 V |
| Shielding (hybrid connector): | 360° shield contact |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-03-92 |
| eClass 10.0: | 27-44-02-02 |
| Type: | IE-CD-V14MHYB-10P-C-MA |
| Order No.: | 1068840000 |
| Version: | Junction box, FreeCon, Hybrid, Plug-in connector, IP65 |
| GTIN (EAN): | 4032248823932 |
| Qty.: | 1 pc(s). |
| Width: | 41 |
| Width (inches): | 1.614 inch |
| Height: | 52 mm |
| Height (inches): | 2.047 inch |
| Depth: | 142 mm |
| Depth (inches): | 5.591 inch |
| Net weight: | 652.82 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 75 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...75 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour: | silver |
| Housing main material: | Aluminium profile, Cover: die-cast zinc, nickel plated |
| Protection degree: | IP65 |
| UL 94 flammability rating: | V-0 |
| Certificate no. (cULus): | E316369 |
| Connector standard: | IEC 61076-3-117 Var. 14 |
| Contact material (hybrid connector): | Copper alloy |
| Contact resistance (hybrid connector): | ≤ 10 mΩ |
| Contact surface (hybrid connector): | Gold over nickel |
| Housing base material (hybrid connector): | Zinc diecast (flange), PA 66 |
| Material of seal (hybrid connector): | NBR |
| Plugging cycles (hybrid connector): | 500 |
| Pole count: | 10 |
| Protection degree (hybrid connector): | IP65 |
| Rated current (hybrid connector): | 3 A per contact |
| Rated voltage (DIN EN 61984) (hybrid connector): | 24 V |
| Shielding (hybrid connector): | 360° shield contact |
| ETIM 6.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| eClass 9.0: | 27-44-02-02 |
| eClass 9.1: | 27-44-03-92 |
| eClass 10.0: | 27-44-02-02 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,696 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
