Weidmueller
1000570000
BL-I/O 3.50/30LR PNP LED SN BK BX
Poproś o ofertę

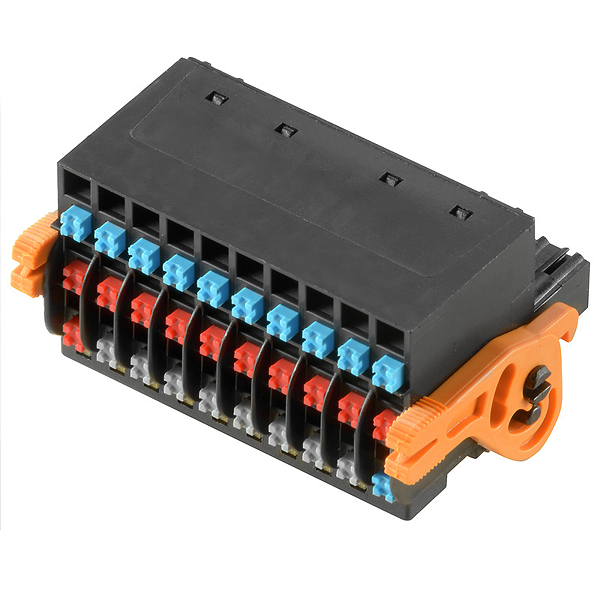

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1000570000
BL-I/O 3.50/30LR PNP LED SN BK BX
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | BL-I/O 3.50/30LR PNP LED SN BK BX |
| Order No.: | 1000570000 |
| Version: | PCB plug-in connector, female plug, 3.50 mm, Number of poles: 30, 180°, PUSH IN, Spring connection, Clamping range, max. : 1.5 mm², Box |
| GTIN (EAN): | 4032248838073 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Width: | 42.3 |
| Width (inches): | 1.665 inch |
| Height: | 18.4 mm |
| Height (inches): | 0.724 inch |
| Net weight: | 23.15 g |
| Product family: | OMNIMATE Signal - series BL/SL 3.50 |
| Type of connection: | Field connection |
| Wire connection method: | PUSH IN, Spring connection |
| Pitch in mm (P): | 3.5 mm |
| Pitch in inches (P): | 0.138 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 30 |
| L1 in mm: | 31.5 mm |
| L1 in inches: | 1.24 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Rated cross-section: | 1 mm² |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Stripping length: | 8 mm |
| Screwdriver blade: | 0.4 x 2.5 |
| Screwdriver blade standard: | DIN 5264 |
| Plugging force/pole, max.: | 6 N |
| Pulling force/pole, max.: | 6 N |
| Insulating material: | PBT |
| Colour: | black |
| Colour of operational elements: | grey, blue, red |
| Material of operational elements: | PBT |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Copper alloy |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 75 °C |
| Temperature range, installation, min.: | -30 °C |
| Temperature range, installation, max.: | 75 °C |
| Clamping range, min.: | 0.2 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 1.5 mm² |
| Flexible, min. H05(07) V-K: | 0.2 mm² |
| Flexible, max. H05(07) V-K: | 1.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.2 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 0.75 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.2 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 1 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.4 mm x 1.5 mm; 1.9mm |
| Type: | fine-wired |
| nominal: | 0.25 mm² |
| nominal: | 10 mm |
| Type: | fine-wired |
| nominal: | 0.34 mm² |
| nominal: | 10 mm |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 10 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 10 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 1.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 2.2 A |
| Rated current, max. number of poles (Tu=20°C): | 2 A |
| Rated current, min. number of poles (Tu=40°C): | 2.2 A |
| Rated current, max. number of poles (Tu=40°C): | 2 A |
| Rated voltage for surge voltage class / pollution degree III/3: | 50 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 0.8 kV |
| Short-time withstand current resistance: | 3 x 1s with 120 A |
| Rated voltage (Use group B / CSA): | 50 V |
| Rated voltage (Use group D / CSA): | 50 V |
| Rated current (Use group B / CSA): | 5 A |
| Rated current (Use group D / CSA): | 5 A |
| Wire cross-section, AWG, min.: | AWG 22 |
| Wire cross-section, AWG, max.: | AWG 16 |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 50 V |
| Rated voltage (Use group D / UL 1059): | 50 V |
| Rated current (Use group B / UL 1059): | 5 A |
| Rated current (Use group D / UL 1059): | 5 A |
| Wire cross-section, AWG, min.: | AWG 24 |
| Wire cross-section, AWG, max.: | AWG 16 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 35 mm |
| VPE width: | 110 mm |
| VPE height: | 185 mm |
| Standard: | draft DIN VDE 0627 section 6.2.2 / 09.91 |
| Test: | mark of origin, type identification, pitch, type of material |
| Evaluation: | available |
| Test: | durability |
| Evaluation: | passed |
| Standard: | DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99 |
| Type of conductor and conductor cross-section: | solid 0.2 mm² |
| Type of conductor and conductor cross-section: | stranded 0.2 mm² |
| Type of conductor and conductor cross-section: | solid 1.5 mm² |
| Type of conductor and conductor cross-section: | stranded 1.5 mm² |
| Type of conductor and conductor cross-section: | AWG 24/1 |
| Type of conductor and conductor cross-section: | AWG 24/19 |
| Type of conductor and conductor cross-section: | AWG 16/1 |
| Type of conductor and conductor cross-section: | AWG 16/19 |
| Evaluation: | passed |
| Standard: | DIN EN 60999 section 8.4 / 04.94 |
| Requirement: | 0.2 kg |
| Type of conductor and conductor cross-section: | stranded 0.05 mm² |
| Evaluation: | passed |
| Requirement: | 0.3 kg |
| Type of conductor and conductor cross-section: | solid 0.5 mm² |
| Type of conductor and conductor cross-section: | AWG 24/1 |
| Type of conductor and conductor cross-section: | AWG 24/19 |
| Evaluation: | passed |
| Requirement: | 0.4 kg |
| Type of conductor and conductor cross-section: | solid 1.5 mm² |
| Type of conductor and conductor cross-section: | stranded 1.5 mm² |
| Type of conductor and conductor cross-section: | AWG 16/1 |
| Type of conductor and conductor cross-section: | AWG 16/19 |
| Evaluation: | passed |
| Standard: | DIN EN 60999 section 8.5 / 04.94 |
| Requirement: | ≥10 N |
| Type of conductor and conductor cross-section: | AWG 24/1 |
| Type of conductor and conductor cross-section: | AWG 24/19 |
| Evaluation: | passed |
| Requirement: | ≥30 N |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Evaluation: | passed |
| Requirement: | ≥40 N |
| Type of conductor and conductor cross-section: | H05V-U1.5 |
| Type of conductor and conductor cross-section: | H05V-K1.5 |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
