Weidmueller
0294360000
AKZ 4
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

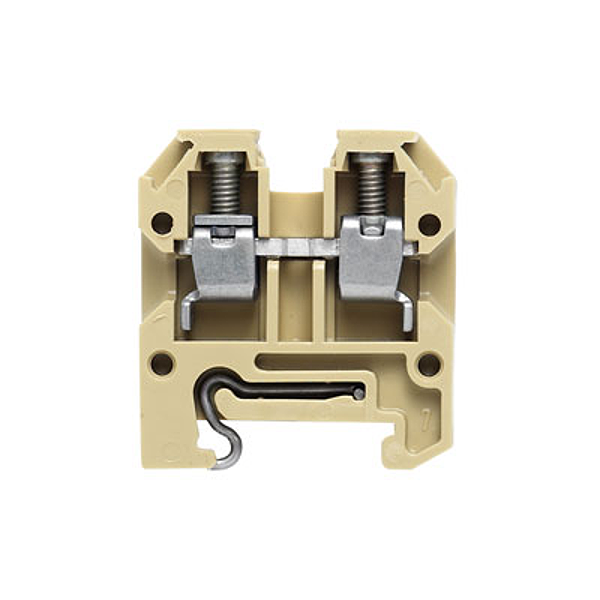

Weidmueller 0294360000
AKZ 4
SAK Series, Feed-through terminal, Rated cross-section: 4 mm², Screw connection
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | AKZ 4 |
| Order No.: | 0294360000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 4 mm², Screw connection |
| GTIN (EAN): | 4008190054625 |
| Qty.: | 100 pc(s). |
| Width: | 6.1 mm |
| Width (inches): | 0.24 inch |
| Height: | 27 mm |
| Height (inches): | 1.063 inch |
| Depth: | 29 mm |
| Depth (inches): | 1.142 inch |
| Depth including DIN rail: | 30.5 mm |
| Weight: | 5.93 g |
| Net weight: | 5.409 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Certificate No. (ATEX): | TUEV18ATEX8221U |
| Certificate No. (IECEX): | IECEXTUR18.0024U |
| Max. voltage (ATEX): | 275 V |
| Current (ATEX): | 32 A |
| Wire cross section max. (ATEX): | 6 mm² |
| Max. voltage (IECEX): | 275 V |
| Current (IECEX): | 32 A |
| Wire cross section max. (IECEX): | 6 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 15 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 154685-1372355 |
| Current size C (CSA): | 10 A |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 24 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 2 |
| Stripping length: | 8 mm |
| Tightening torque, max.: | 0.8 Nm |
| Tightening torque, min.: | 0.6 Nm |
| Torque level with DMS electric screwdriver: | 2 |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 15 offset: | 13.5 mm |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 400 V |
| Rated current: | 32 A |
| Current at maximum wires: | 41 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 27 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
