Produkt
Pulsotronic
08313550160
KJ1-Q5MB25-DPS-X0429
Poproś o ofertę

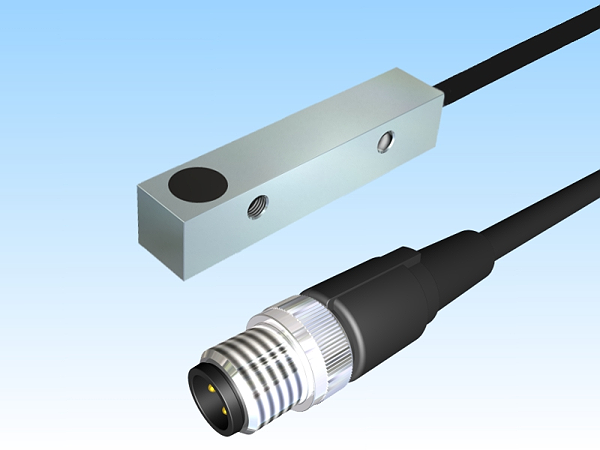

Prawa autorskie do obrazu: Pulsotronic
Pulsotronic 08313550160
KJ1-Q5MB25-DPS-X0429
Inductive sensor DC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ1-Q5MB25-DPS-X0429 |
| Order number: | 08313550160 |
| Switching distance: | 1 mm |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | connector M8 |
| Connection diagramm: | |
| Dimension (in mm): | Q 5 x 5 x 25 |
| Operating voltage: | 10 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 10 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 2000 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 5 % |
| Swiching state: | LED |
| Time delay: | 100 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Brass, nickel plated |
| Material active face: | PBT |
| Cable length: | 300 mm |
| Utilisation category: | DC 13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Contact holder: | TPU |
| Cable material: | PUR LIFY11Y schwarz |
| Cable cross: | 3x0,14 mm² |
| Termination: | Pigtail M8 |
| FIT / MTTF acc. to SIEMENS 29500: | 39,06 / 2923y |
| Errors and omissions exceptet: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
