1-Click Zapytanie
Produkt
Pulsotronic
08310001928
KJ16-Q16KN-DPS-X1133
Poproś o ofertę
Prawa autorskie do obrazu: Pulsotronic

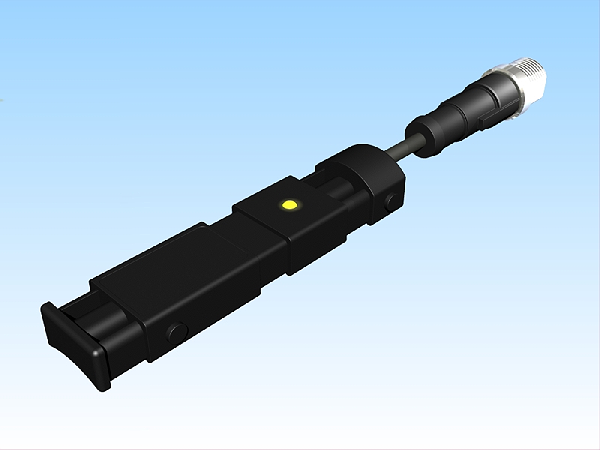

Pulsotronic 08310001928
KJ16-Q16KN-DPS-X1133
Inductive tube sensor
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ16-Q16KN-DPS-X1133 |
| Order number: | 08310001928 |
| Switching distance: | 16 mm |
| Mounting: | non shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | connector M12 |
| Connection diagramm: | |
| Dimension (in mm): | S 19 x 11 x 78 |
| Special features: | Tube sensor with dynamic function Impulse delay 200ms |
| Operating voltage: | 10 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 10 mA |
| Leakage current: | ≤ 10 µA |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Swiching state: | LED |
| Digital output: | dynamic output function |
| Time delay: | 300 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Plastic |
| Cable length: | 100 mm |
| Utilisation category: | DC 13 |
| Cable material: | PUR |
| Cable cross: | 3x0.34 mm² |
| Termination: | Pigtail M12 3pin 100mm |
| Errors and omissions exceptet: | Ultramid B3WG6 schwarz |
| FIT / MTTF: | 146,97 / 777y |
| Fehler und Änderungen vorbehalten: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
