Produkt
Pulsotronic
08310000903
KJ16-Q16KN-DPS-V1
Poproś o ofertę
Prawa autorskie do obrazu: Pulsotronic
Pulsotronic 08310000903
KJ16-Q16KN-DPS-V1
Inductive tube sensor
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ16-Q16KN-DPS-V1 |
| Order number: | 08310000903 |
| Switching distance: | 16 mm |
| Mounting: | non shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | connector M8 |
| Connection diagramm: | |

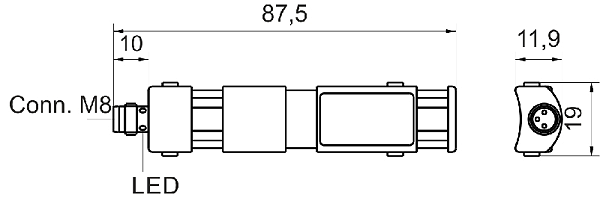

| Dimension (in mm): | S 19 x 11 x 87.5 |
| art_gewicht: | 40 |
| Special features: | Tube sensor with dynamic function for detection of moving parts in plastic hoses |
| Operating voltage: | 10 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 10 mA |
| Leakage current: | ≤ 10 µA |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Swiching state: | LED |
| Time delay: | 300 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Plastic |
| Utilisation category: | DC 13 |
| Termination: | Connector M8 3pin |
| Errors and omissions exceptet: | max. 150 ms |
| FIT / MTTF: | 147,72 / 773y |
| Fehler und Änderungen vorbehalten: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
