Produkt
Puls
CP10.241-R1
Poproś o ofertę
Prawa autorskie do obrazu: Puls

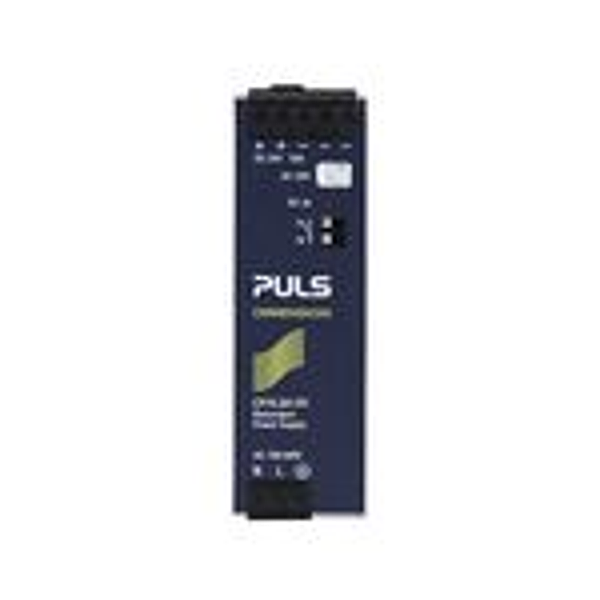

Puls CP10.241-R1
Power supply with integrated decoupling function
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
AC 100-240V Wide-range input. Width only 39mm. Built-in decoupling mosfet for 1+1 and n+1 redundancy. Efficiency up to 94.7%. 20% Output power reserves. Safe Hiccup. PLUS, overload mode. Easy fuse breaking – 3 times nominal current for 12ms. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact. Current sharing feature included
Parametry techniczne
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.97 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 6A/9A |
| External Input Fuse Recommendation: | min. B - 6A / C - 6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24 |
| Output Current Range: | 10A |
| Output Current: | 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 39mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 600g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.7% |
| Power Losses, typ.: | 13.4W |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
