Leuze electronic
50138248
A7-V1-DB-G-T
Poproś o ofertę
Prawa autorskie do obrazu: Leuze electronic
Leuze electronic 50138248
A7-V1-DB-G-T

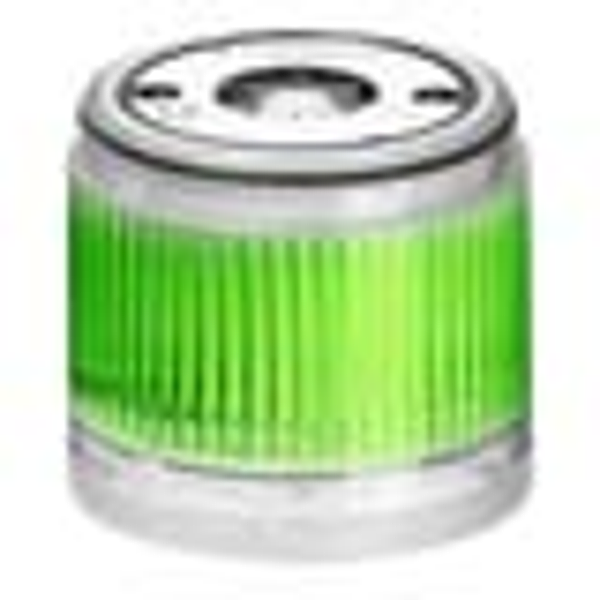

A7-V1-DB-G-T - Signaling column element
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Series: | A7 |
| Suitable for: | Signaling column elements of the A7 – Advanced Series |
| Type of signaling: | Optical |
| Life expectancy: | > 100,000 h |
| Supply voltage UB: | 24 V, DC, 10 % |
| Current consumption, max.: | 50 mA |
| Notes: | Protected against accidental interchanges: Actuation of the colors is performed via PINs, thus, the calotte position can be freely selected. |
| Design: | Cylindrical |
| Dimension (Ø x L): | 70 mm x 50 mm |
| Housing material: | Plastic, PC-ABS |
| Net weight: | 109 g |
| Type of fastening: | Bayonet system |
| Type of illuminant: | LED/24V |
| Signal image: | Flashing light |
| Lens color: | Green |
| Angle of radiation: | 360° |
| Ambient temperature, operation: | -10 ... 60 °C |
| Degree of protection: | IP 66 |
| Certifications: | CSA, CE |
| Customs tariff number: | 85318070 |
| eCl@ss 8.0: | 27371220 |
| eCl@ss 9.0: | 27371220 |
| ETIM 5.0: | EC000232 |
| ETIM 6.0: | EC000232 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Indien |
| EAN: | |
| Waga: | 0,13 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
