Produkt
IPF
OVSI0118
Poproś o ofertę
Prawa autorskie do obrazu: IPF

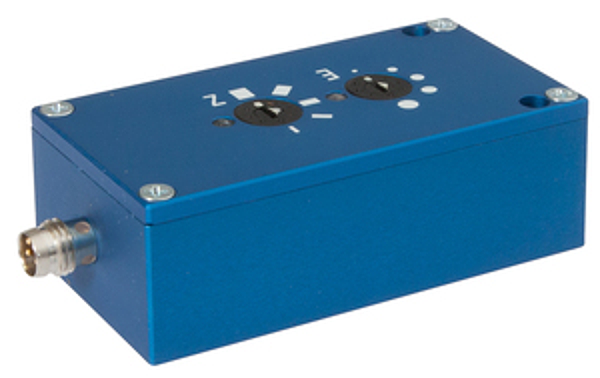

IPF OVSI0118
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Mounting method: | Floor fastening |
| Height: | 36mm |
| Design: | Cuboid |
| Housing material: | Aluminum |
| Device design: | Field device |
| Width: | 36mm |
| Depth: | 70mm |
| Length: | 70mm |
| Degree of protection (IP): | IP64 |
| Voltage type: | DC |
| Number of channels: | 1 |
| Number of pins: | 4 |
| Switching voltage: | 32V |
| Type of switching output: | PNP |
| Rated switching current: | 0.2A |
| Number of output circuits, transistor pnp: | 1 |
| Short-circuit protection: | yes |
| Switching voltage DC: | 32V |
| Turn-off delay: | 20 - 300ms |
| Power consumption: | 0.19W |
| Type of voltage supply: | Active |
| Switching frequency: | 1000Hz |
| Type of switching function: | Normally open contact (NO) |
| Number of output circuits, transistor npn: | 1 |
| Rated supply voltage at DC: | 12 - 32V |
| Malfunction message output: | no |
| Operating temperature: | -20 - 60°C |
| eClass 7.0: | 27210121 |
| eClass 7.1: | 27210121 |
| eClass 8.0: | 27210121 |
| eClass 9.0: | 27210121 |
| eClass 9.1: | 27210121 |
| ETIM-6.0: | EC001485 |
| ETIM-7.0: | EC001485 |
| IPF Product Group: | 705 |
| shipping weight: | 0.07kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85365019 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
