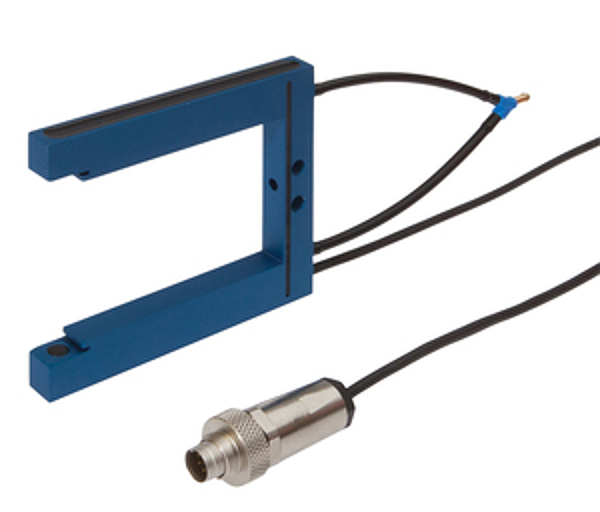

IPF OGSI0308
Sensor optical, fork, Increased soiling reserve, 64x8x74mm, fork width 40mm, Anschluss an Verstärker, Binder712 cable connector 8pin 1m Other, IP67, Aluminum+Glass, Infrared light pulsed
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.
Parametry techniczne
| Cable length: | 1m |
| Housing material: | Aluminum |
| Material of optical surface: | Glass |
| Degree of protection (IP): | IP67 |
| Sensor height: | 64mm |
| Fork depth: | 60mm |
| Fork light barrier design: | Furcate |
| Installation bracket: | no |
| Design: | Cuboid |
| Ambient temperature: | -20 - 80°C |
| Material of cable sheath: | Other |
| Sensor width: | 74.5mm |
| Sensor length: | 8mm |
| Fork width: | 40mm |
| Aperture diameter: | 1.5mm |
| Number of pins: | 8 |
| Equipment protection class: | Protection class 3 |
| Connection to amplifier: | yes |
| Repeatability +/-: | 500µm |
| Type of electrical connection: | Binder712 cable connector |
| Relative repeat accuracy: | 0.5mm |
| Type of the forked light barrier: | Increased soiling reserve |
| Dynamic switching output: | no |
| Laser protection class: | None |
| Min. object size: | 2mm |
| Light beam form: | Point |
| Light color of the transmitter diode: | Infrared light |
| Light spot: | 1.5mm² |
| Resolution: | 2000µm |
| Light wavelength of the transmitter diode: | 905nm |
| Pulsed light source: | yes |
| eClass 7.0: | 27270909 |
| eClass 7.1: | 27270909 |
| eClass 8.0: | 27270909 |
| eClass 9.0: | 27270909 |
| eClass 9.1: | 27270909 |
| ETIM-6.0: | EC002720 |
| ETIM-7.0: | EC002720 |
| IPF Product Group: | 705 |
| shipping weight: | 0.21kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 85365019 |
