Produkt
Escha
8075274
PK-AM12K5.244-10/S5015
Poproś o ofertę
Prawa autorskie do obrazu: Escha

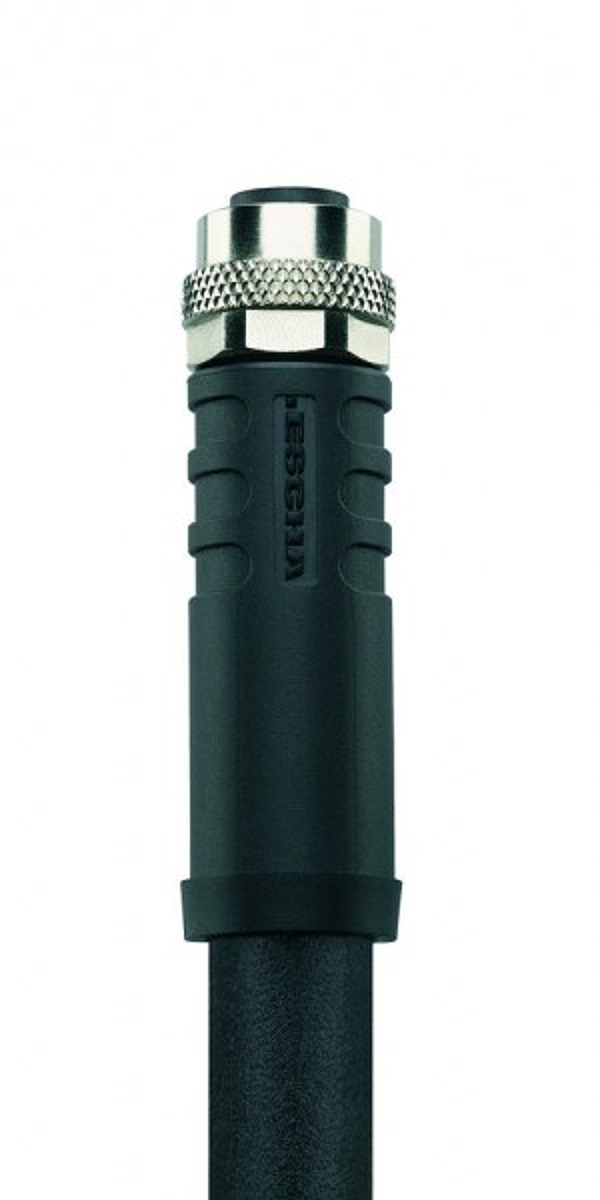

Escha 8075274
PK-AM12K5.244-10/S5015
M12 female, straight, POWER, 4+PE poles, K-coded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
High flexible and oil-resistant, halogen-free control cables for fixed-wired dynamic drag-chain applications ( a = 50 m/s²) with average loads. The PUR outer jacket is firm and resistant to high mechanical stresses like grinding or abrasion. They are adapted for applications in automation, load circuits of industrial machinery, automatic assembly- and placement machinery, especially in wet areas of machine tools and transfer lines. The cables meet the UL and CSA requirements.
Pliki do pobrania
Parametry techniczne
| Outer diameter of jacket: | 9,90 mm |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Coding: | K |
| Rated voltage: | 630V AC | 600V AC (UL) |
| Current load (at 40°C): | 12 |
| Conductor structure: | extra finely stranded class 6 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Temperature range (repeated): | -25°C...+80°C |
| Temperature range (UL repeated): | -40°C...+80°C |
| Temperature range (UL fixed): | -50°C...+80°C |
| Halogen-free: | Yes |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 2 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
