Produkt
Escha
8073387
AL-FHM8KUB4.5-P/M10
Poproś o ofertę
Prawa autorskie do obrazu: Escha

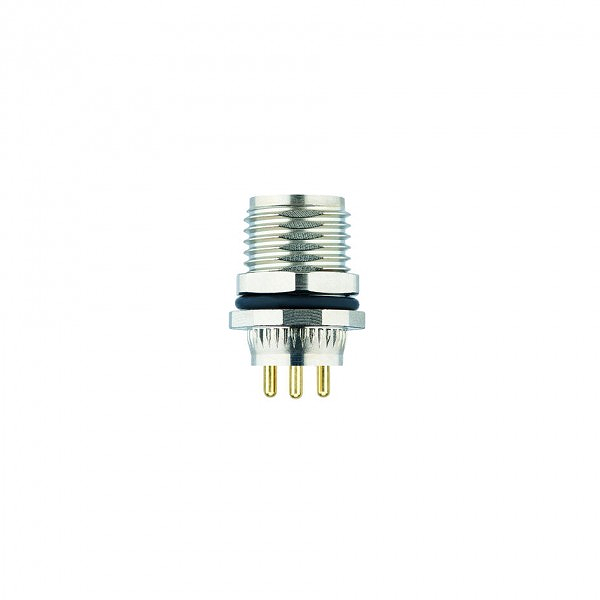

Escha 8073387
AL-FHM8KUB4.5-P/M10
Receptacle, M8 female, straight, 5 poles, B-coded, back wall-mounting, print contact
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Fastening thread: | M10x1 |
| Connector: | female, straight, M8 |
| Number of pins: | 5 |
| Coding: | B |
| Rated voltage: | 30V |
| Reflow: | 2 min. 250 °C |
| Current load (at 40°C): | 3 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Wall thickness area (Δh): | 3,0...6,0 mm |
| Adjustable fixing screw: | Yes |
| Connecting type: | Print contact |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
