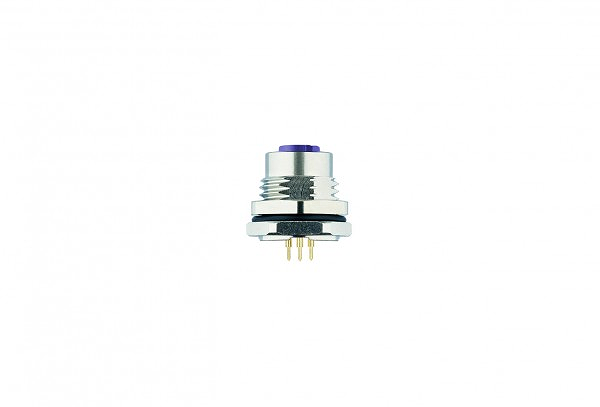

Escha 8072611
PB-FHM12KUB5-P/M16
Receptacle, M12 female, straight, Profibus, 5 poles, B-coded, back wall-mounting, print contact
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Fastening thread: | M16x1.5 |
| Wrench size of fastening nut: | A/F19 |
| Connector: | female, straight, M12 |
| Number of pins: | 5 |
| Coding: | B |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA GF, VT |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Connecting type: | Print contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
