Escha
8068562
IE-RJ45SS8.002-10-IE-RJ45SS8.002/S510BU

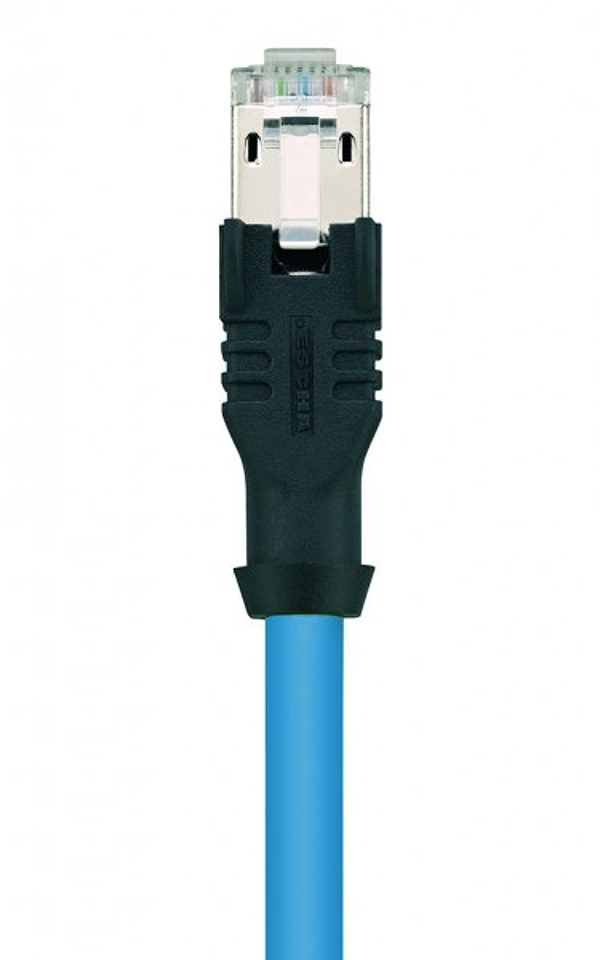

Escha 8068562
IE-RJ45SS8.002-10-IE-RJ45SS8.002/S510BU
RJ45 male, straight, RJ45 male, straight, Industrial Ethernet, 100 MBit/s, 8 poles, blue, shielded
Opis
High-grade, shielded SF/UTP-cable, specified up to 200MHz, with PVC-outer jacket for safe data transmission in the data infrastructure and at office level. The VDE-tested Cat5e cable (according to EN50288 and IEC 61156) meets highest demands on economic efficiency, universality, and performance. Due to the possible bending radiuses, the flexible AWG26/7-cable is best adapted for applications in structured wiring according to ISO/. IEC 11801 as well as EN 50173 in buildings, server- and switch cabinets. Ideal solutions for all applications of class D, according to IEEE802.3ab, VoIP and PoE. The cable is available in grey, yellow, blue, red, and green. Black on request.
Pliki do pobrania
Parametry techniczne
| Outer diameter of jacket: | 5,50 mm |
| Number of pins: | 8 |
| Jacket color: | BU, similar RAL5015 |
| Wire cross-section: | 4 x 2 x AWG26 |
| Wire insulation material: | PE |
| Current load (at 40°C): | 1 A |
| Insulation resistance (Ω): | ≥10 8 |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -20°C...+60°C |
| Transmission features: | Cat5e |
| Shielding: | Yes |
| Special features: | RoHs compliant, high flexibility, VDE-proved |
| Material of shielding housing: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 60603-7-5 |
| Standards: | IP20 |
| Degree of protection (mounted): | >1000 mating cycles |
| Mechanical life-cycle: | 1 |
| Degree of pollution: | with shielding |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Ungarn |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
