Produkt
Escha
8068301
PS-WM12K4.155-1-PS-AM12S4.155/S5015
Poproś o ofertę

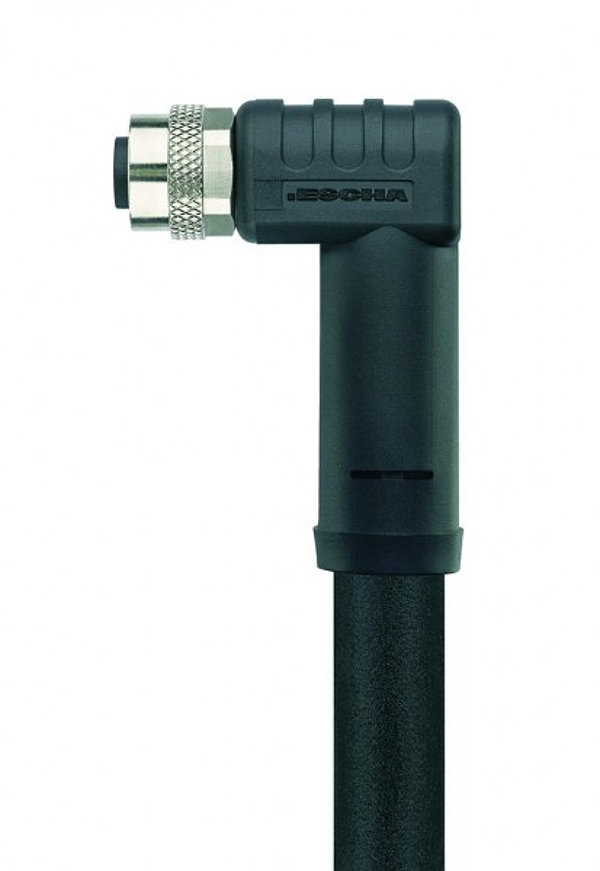

Prawa autorskie do obrazu: Escha
Escha 8068301
PS-WM12K4.155-1-PS-AM12S4.155/S5015
M12 female, angled, M12 male, straight, POWER, 3+PE poles, S-coded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
High flexible and oil-resistant, halogen-free control cables for fixed-wired dynamic drag-chain applications ( a = 50 m/s²) with average loads. The PUR outer jacket is firm and resistant to high mechanical stresses like grinding or abrasion. They are adapted for applications in automation, load circuits of industrial machinery, automatic assembly- and placement machinery, especially in wet areas of machine tools and transfer lines. The cables meet the UL and CSA requirements.
Pliki do pobrania
Parametry techniczne
| Connector: | female, angled, M12 |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Wire cross-section: | 4 x 1.5 mm² |
| Wire insulation material: | PP |
| Current load (at 40°C): | 12 A |
| Conductor structure: | extra finely stranded class 6 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Grip body material: | Plastic, TPU, BK |
| Temperature range (UL fixed): | -50°C...+80°C |
| Sealing (female) material: | IEC 61076-2-111 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 2 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
