Produkt
Escha
8061148
IE-FKFDSX8.066-2/S3500
Poproś o ofertę
Prawa autorskie do obrazu: Escha
Escha 8061148
IE-FKFDSX8.066-2/S3500

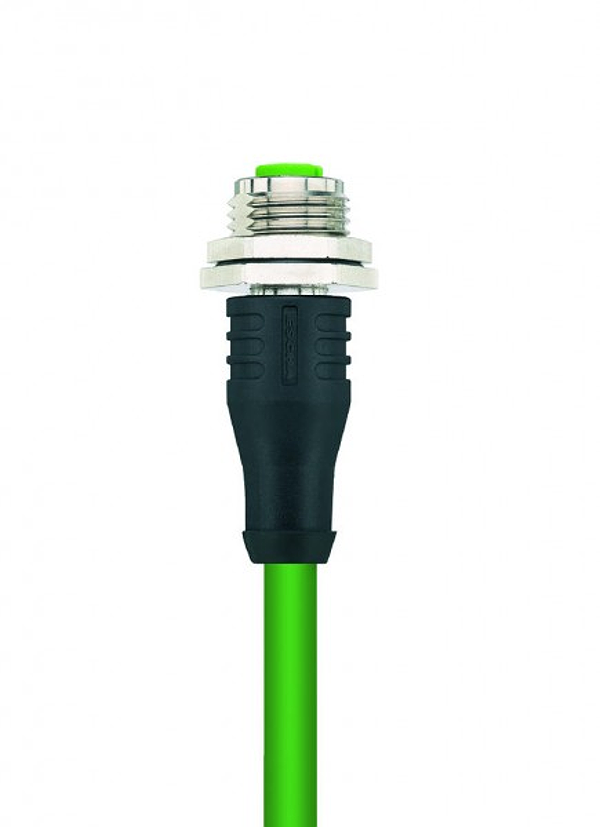

Receptacle single-ended cordset, M12 female, straight, Industrial Ethernet, 8 poles, X-coded, back wall-mounting, shielded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Shielded PUR-cable for industrial applications. The cable meets the UL-Style 20963 and the Cat7 (electrical properties according to EN50288-4-2) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable.
Pliki do pobrania
Parametry techniczne
| Transmission features: | Cat6A |
| Material: | PUR |
| Number of pins: | 8 |
| Pin assignment: | 1 WHOG, 2 OG; 3 WHGN, 4 GN; 5 WHBN, 6 BN; 7 WHBU, 8 BU |
| Wire insulation material: | PE |
| Rated voltage: | 50V AC | 60V DC |
| Current load (at 40°C): | 0.5 |
| Insulation resistance (Ω): | ≥10 8 |
| Wire insulation material: | PUR |
| Temperature range (repeated): | -20°C...+60°C |
| Halogen-free: | Yes |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, PA, GN |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, UV resistant, hydrolysis proof, halogen free, oil resistant, high flexibility, no corrosive gases, microbes resistant, no fire propargation |
| Adjustable fixing screw: | Yes |
| Connecting type: | Cable |
| Standards: | IEC 61076-2-109 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
