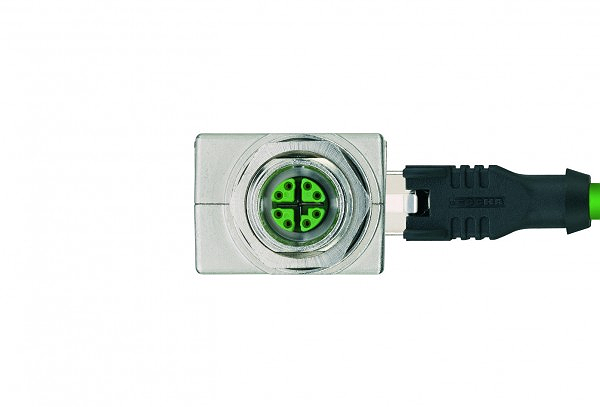

Escha 8055774
IE-WFKFDSX8-RJ45KS
Panel feed through, M12 female, angled, 8 poles, Industrial Ethernet, RJ45 female, 8 poles, X-coded, back wall-mounting, shielded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Connector: | female, angled, M12 |
| Wall thickness area (Δh): | 0,9...4,0 mm |
| Number of pins: | 8 |
| Coding: | X |
| Rated voltage: | 50V AC | 60V DC |
| Current load (at 40°C): | 0.5 A |
| Insulation resistance (Ω): | ≥10 8 |
| Transmission features: | Cat6A |
| Ambient temperature product: | -25°C...+85°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA, GN |
| Material of shielding housing: | Zinc die-cast |
| Sealing (female) material: | IEC 61076-2-109 |
| Standards: | IP67 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 2 |
| Degree of pollution: | with shielding |
| Shielding: | DIN EN 45545-2 HL1-3 |
| Fire prevention according to: | Tx (-40°C...+90°C) |
| Temperature range: | Class 1, Category B (DIN EN 61373) |
| Shock & vibration: | IP67 (-30°C...+90°C), IP65 (-40°C...+90°C), IP20 (RJ45) |
| Degree of protection (mounted): | DIN EN 50155, DIN EN 45545-2 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
