Escha 8048830
IE-RJ45SS8.002-5-IE-RJ45SS8.002/S3500

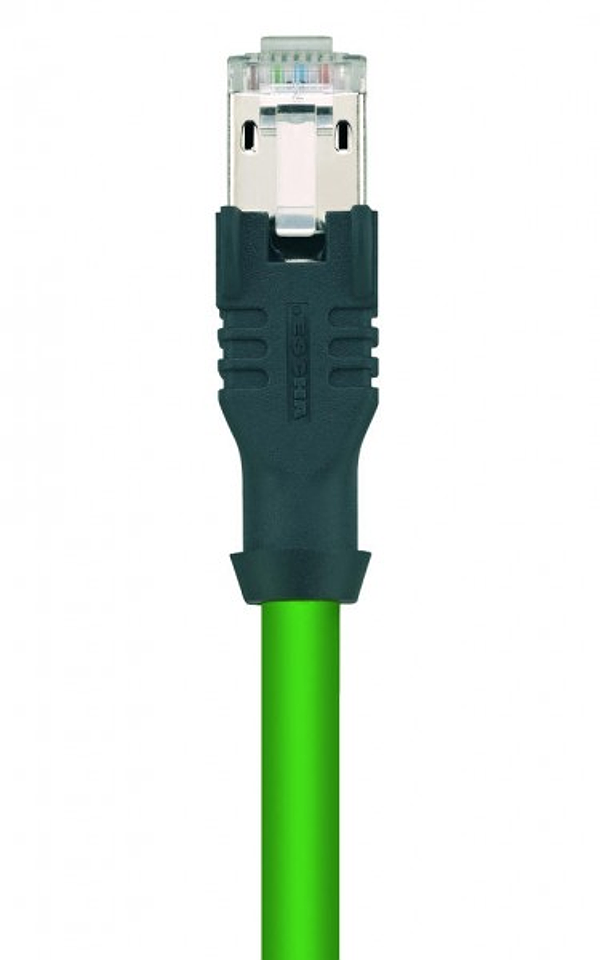

RJ45 male, straight, RJ45 male, straight, Industrial Ethernet, 10 GBit/s, 8 poles, shielded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Shielded PUR-cable for industrial applications. The cable meets the UL-Style 20963 and the Cat7 (electrical properties according to EN50288-4-2) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable.
Pliki do pobrania
Parametry techniczne
| Connector: | male, straight, RJ45 |
| Number of pins: | 8 |
| Pin assignment: | 1 WHOG, 2 OG; 3 WHGN, 4 BU; 5 WHBU, 6 GN; 7 WHBN, 8 BN |
| Wire cross-section: | 4 x 2 x 0.14 mm² |
| Wire insulation material: | PE |
| Current load (at 40°C): | 1 A |
| Insulation resistance (Ω): | ≥10 8 |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -40°C...+80°C |
| Contact material: | Metal, CuZn, gold-plated |
| Halogen-free: | Yes |
| Grip body material: | Plastic, TPE, BK |
| Material of shielding housing: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 60603-7-5 |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, UV resistant, hydrolysis proof, halogen free, oil resistant, high flexibility, no corrosive gases, microbes resistant, no fire propargation |
| Degree of protection (mounted): | >750 mating cycles |
| Mechanical life-cycle: | 1 |
| Degree of pollution: | with shielding |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,25 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
