Escha 8043870
PB-WWAKSW2.012-2/S1800

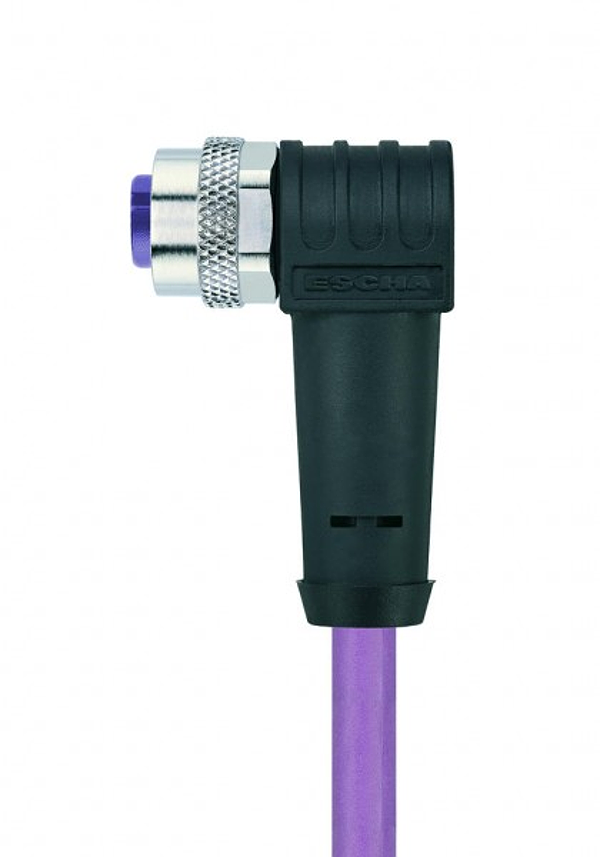

M12 female, angled, Profibus, 4 poles, B-coded, shielded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
UL- and CSA-listed shielded PUR-cable for automation technology (control of sensors and actuators). Suited for common variants of PROFIBUS DP and PROFIBUS PA. Setup and materials used allow for applications under harsh enviroment conditions (abrasion, bending, vibrations etc.). Drag-chain application is possible. (>1million bending cycles).
Pliki do pobrania
Parametry techniczne
| Connector: | female, angled, M12 |
| Number of pins: | 4 |
| Jacket color: | VT similar RAL4001 |
| Wire cross-section: | 1 x 2 x 0.34 mm² |
| Wire insulation material: | PE |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (repeated): | -25°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, TPU, VT |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,14 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
