Escha 8043869
PB-WAKSW2.012-10/S1800

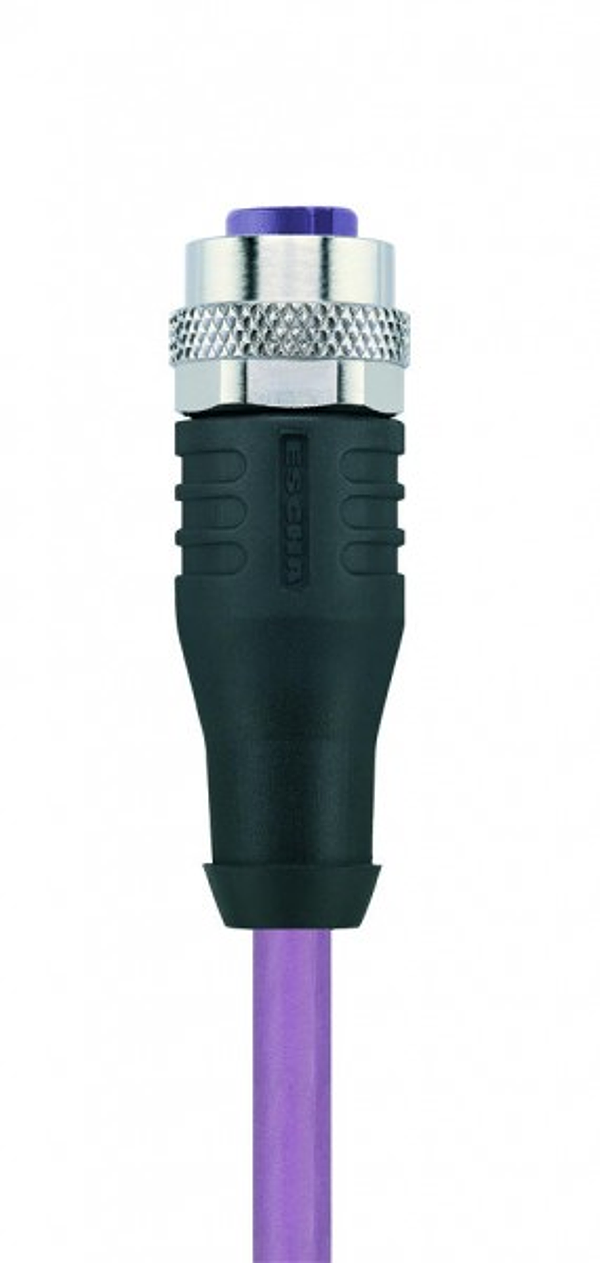

M12 female, straight, Profibus, 4 poles, B-coded, shielded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
UL- and CSA-listed shielded PUR-cable for automation technology (control of sensors and actuators). Suited for common variants of PROFIBUS DP and PROFIBUS PA. Setup and materials used allow for applications under harsh enviroment conditions (abrasion, bending, vibrations etc.). Drag-chain application is possible. (>1million bending cycles).
Pliki do pobrania
Parametry techniczne
| Outer diameter of jacket: | 7,60 mm |
| Material: | PUR |
| Jacket color: | VT similar RAL4001 |
| Coding: | B |
| Rated voltage: | 60V |
| Resistance (mΩ): | 5 |
| Conductor structure: | 19 x 0.15 mm |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, TPU, VT |
| Shielding: | Yes |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, halogen free, oil resistant, high flexibility, microbes resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
