Escha 8043847
AL-KP4.5-2/P00

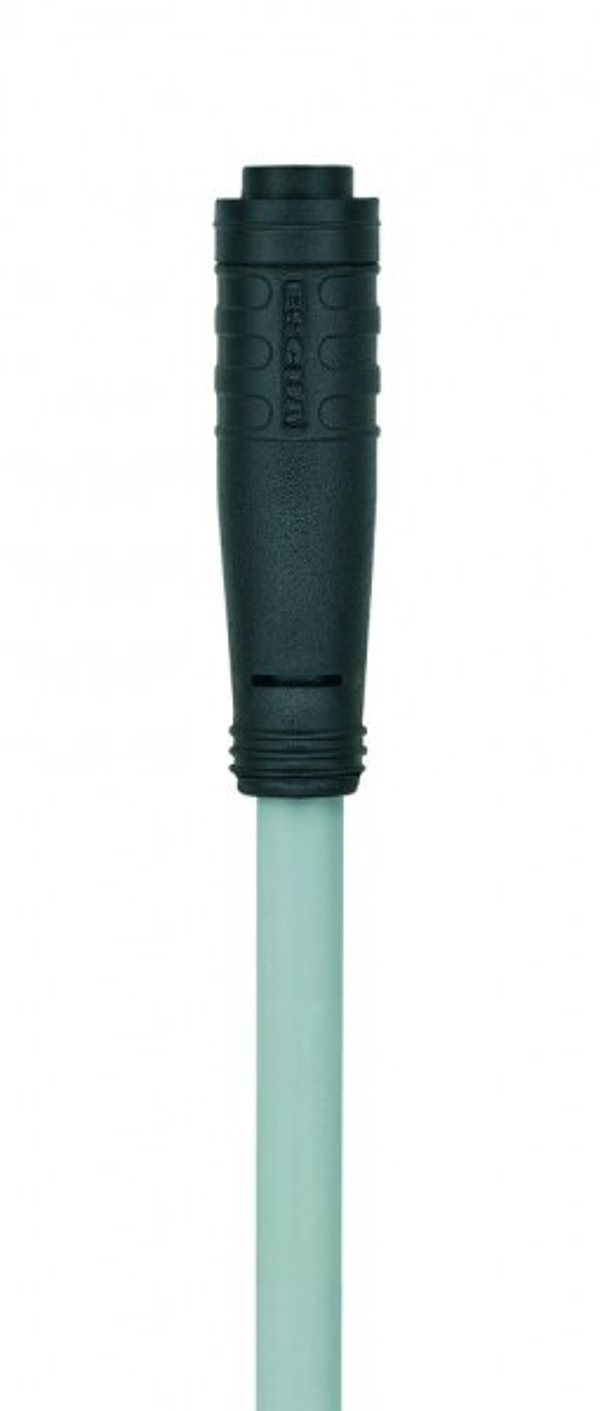

Ø8mm snap female, straight, sensor-/actuator cable, 5 poles
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Pliki do pobrania
Parametry techniczne
| Outer diameter of jacket: | 4,50 mm |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Rated voltage: | 30V |
| Wire insulation material: | PVC |
| Wire colors: | BN, WH, BU, BK, GY |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (fixed): | -25°C...+80°C |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, TPU, BK |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
