Produkt
Escha
8043805
AL-WAS3-5/S370
Poproś o ofertę

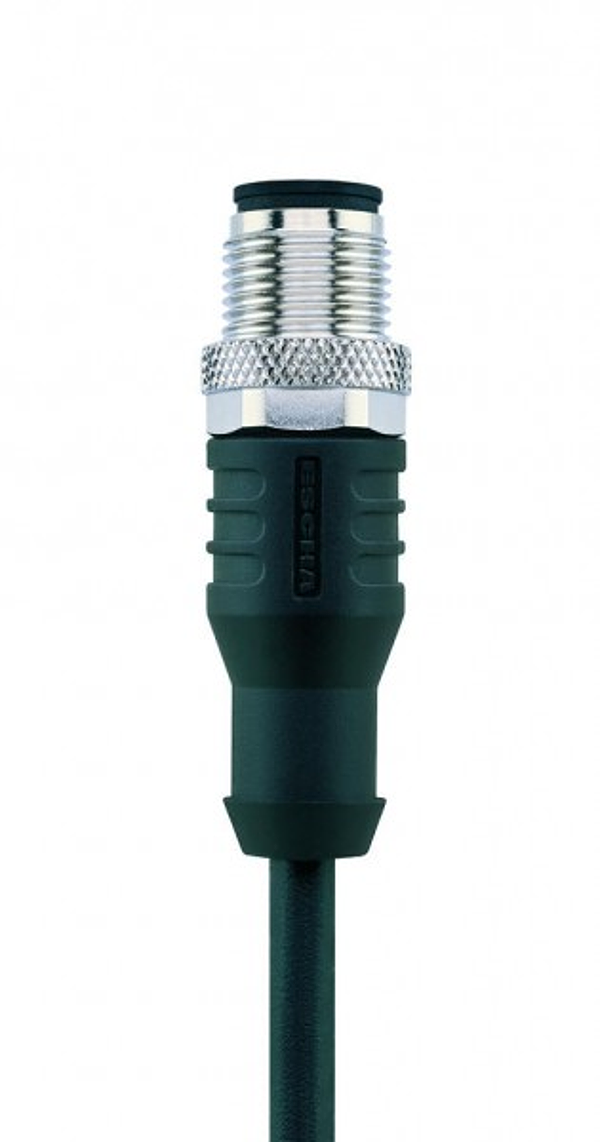

Prawa autorskie do obrazu: Escha
Escha 8043805
AL-WAS3-5/S370
M12 male, straight, sensor-/actuator cable, 3 poles, A-coded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Pliki do pobrania
Parametry techniczne
| Connector: | male, straight, M12 |
| Number of pins: | 3 |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Coding: | A |
| Wire insulation material: | PP |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | >=10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Halogen-free: | Yes |
| Contact-carrier material: | Plastic, TPU, BK |
| Rated voltage cable: | ≤300 V |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Tschechische Republik |
| EAN: | |
| Waga: | 0,13 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
