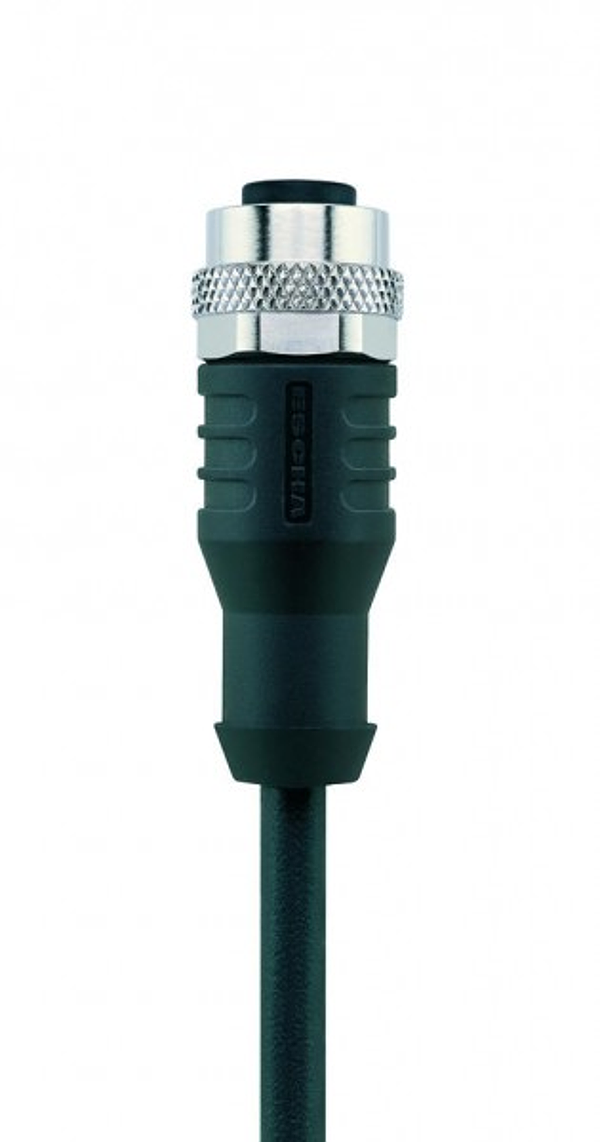

Escha 8043798
AL-WAK3-2/S370
M12 female, straight, sensor-/actuator cable, 3 poles, A-coded
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Pliki do pobrania
Parametry techniczne
| Connector: | female, straight, M12 |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Wire cross-section: | 3 x 0.34 mm² |
| Rated voltage: | 250V |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | >=10 8 |
| Temperature range (fixed): | -50°C...+90°C |
| Temperature range (repeated): | -30°C...+90°C |
| Grip body material: | Plastic, TPU, BK |
| Torsion: | +/-360°/m, ≥ 2 Mio. cycles |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Tschechische Republik |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
