Eaton 207120

T0-3-8007/I1

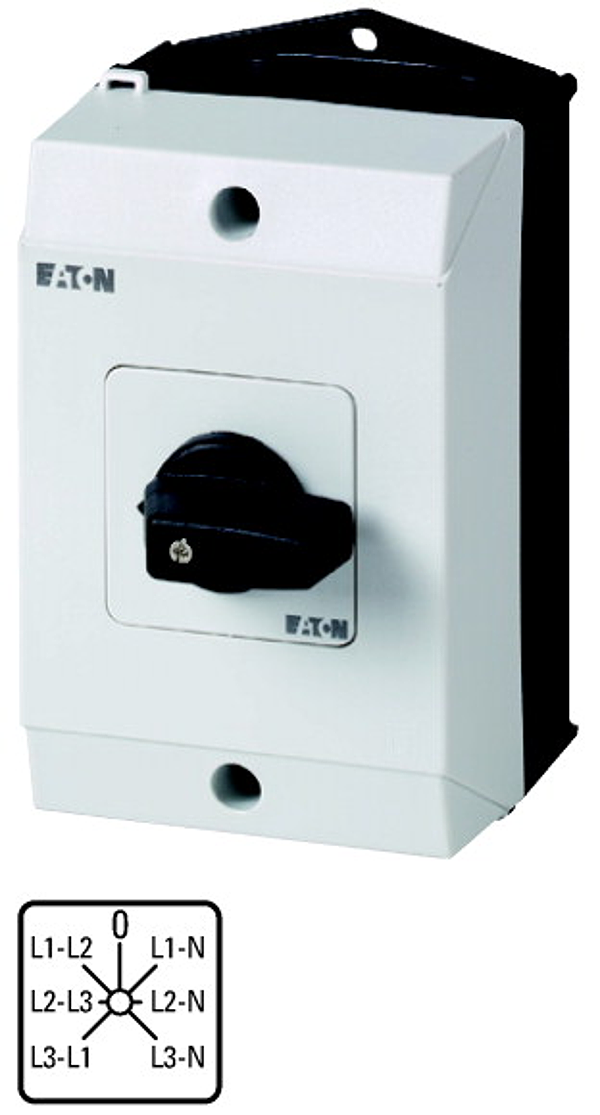

Voltmeter selector switches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, Phase/Phase-0-Phase/N, Design number 8007

Opis

EL-Nummer (Norway). 0001417150. Cam switch according to IEC/EN60947, size T0, in the surface mounting enclosure, front plate approximately 48X48, degree of protection IP65, with black thumb-grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.
