Eaton 043608

T0-3-8048/Z

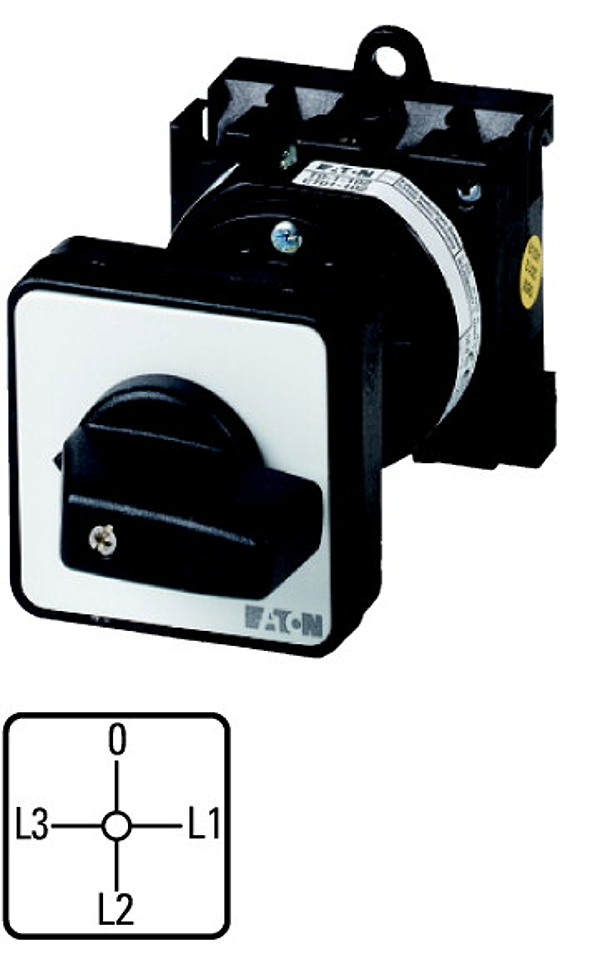

Ammeter selector switches, T0, 20 A, rear mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, L3-0-L1-L2, Design number 8048

Opis

EL-Nummer (Norway). 0001417044. Cam switch according to IEC/EN60947, size T0, rear mounting form, snap screw-floor fastener, coupling drive for door or cover, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.
