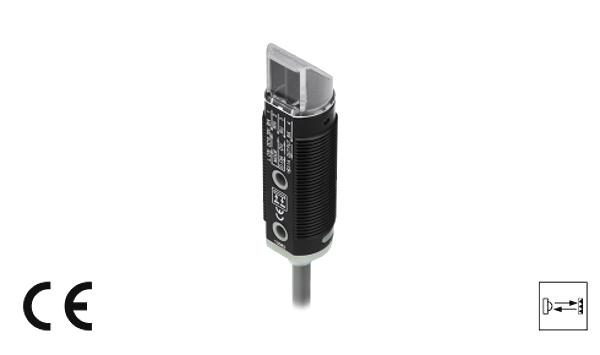

Di-soric 207958
OR 18-1 FKR 3600 P3
Retroreflective Sensor
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Angled optics. Universal mounting possibility. Low installation depth. Sensitivity adjustable. LED indicatior for output state. Plastic housing
Pliki do pobrania
Parametry techniczne
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Characteristics: | Reflector R 46 included |
| Emitted light: | Red, 660 nm, clocked |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | 30 mA |
| Notee, powered by: | 2000 mm (R 46) 3600 mm (R 84) 4000 mm (R 100x100) |
| Sensitivity adjustment: | potentiometer |
| Referring reflector: | R 46, (included) |
| Switching output: | pnp, 100 mA, NO/NC |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 1000 Hz |
| Response-/release time: | 0,50 ms / 0,50 ms |
| Ambient temperature, operation: | -25 … +55 °C |
| Ambient light immunity: | 3 kLx, clocked light, 10 kLx, Sunlight |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | ABS |
| Material: | polymethyl methacrylate (Window) PVC (Cable) |
| Connection: | Cable, 2,0 m |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,08 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
