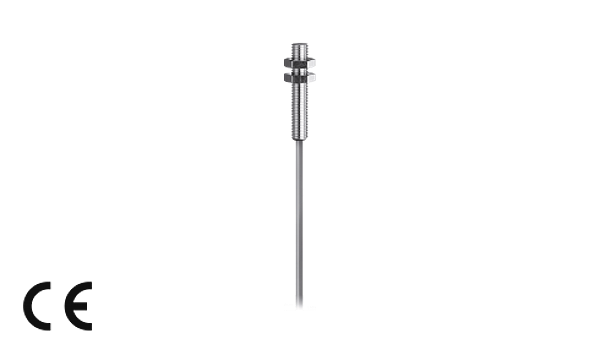

Di-soric 205396
DCC08V2.5NSLK-E
Inductive Proximity Switch
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pressure resistant version up to 20 bar. Stainless steel casing. Sensing surface ZrO2-ceramic. Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression
Pliki do pobrania
Parametry techniczne
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | M8 x 1 (thread) |
| Design: | screw |
| Mounting: | flush |
| Characteristics: | increased operating distance, up to 20 bar, pressure resistant |
| Operating distance: | 2,5 mm |
| Standardized measuring plate: | 7,5 x 7,5 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | npn, 200 mA, NO |
| Switching hysteresis: | 5 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 1000 Hz |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 68 |
| Casing material: | stainless steel / ZrO2- ceramic |
| Material: | PUR (Cable) |
| Connection: | Cable, 2,0 m |
