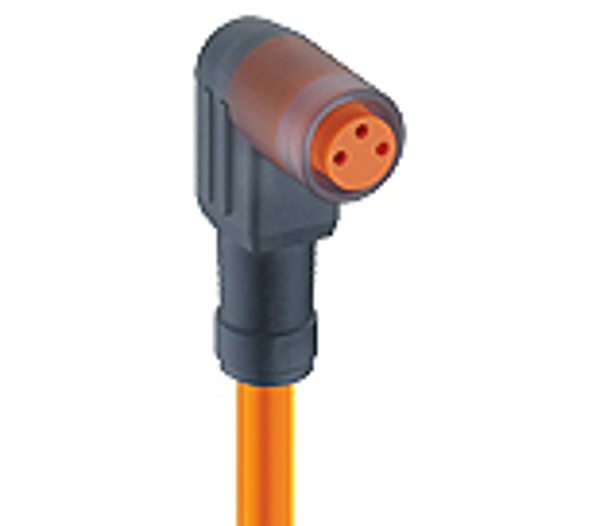

RKMW/LED A 3-06 - M8 Snap-In Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PVC orange cable, 3-wires, 0.34 mm². RKMW/LED A 3-224 - M8 Snap-In Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PUR black cable, 3-wires, 0.34 mm²
Opis
M8 Snap-In Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PVC orange cable, 3-wires, 0.34 mm². M8 Pico actuator/sensor cordset, single-ended, 3-pole, female right angle connector with LED operation and function indicator, with snap-in joint and molded black PUR halogen-free cable. M8 Snap-In Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PUR black cable, 3-wires, 0.34 mm²
Pliki do pobrania
Parametry techniczne
| brown: | blue |
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | M8 Snap-In |
| Brand:: | Lumberg Automation |
| Connector Type:: | Cordset, single ended |
| Type of Contact / Gender:: | Female |
| Connector Design:: | Angled |
| Number of Pins:: | 3 |
| Coding:: | A |
| Shielding:: | Unshielded |
| Attachment Type:: | Snap-Locking |
| Rated Voltage:: | 30 V |
| Rated Voltage (UL):: | 30 V DC |
| Rated Impulse Voltage:: | 0.5 kV |
| Operating Voltage:: | 10-30 V DC |
| Rated Current*:: | 4 A |
| Rated Current (UL)*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Ambient Temperature (Operation)*:: | - 40 °C - + 90 °C |
| Operating Temperature (UL):: | max. + 70 °C |
| Protection Degree / IP Rating**:: | IP65 |
| Design Standard:: | IEC 61076-2-104 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category:: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuSn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | TPU |
| Contact Bearer Color:: | Orange |
| Flammability Class (Contact Bearer):: | UL 94 HB |
| Molded Body Material:: | TPU |
| Molded Body Color:: | Translucent |
| Flammability Class (Molded Body):: | UL 94 HB |
| Function Indicator:: | 2xLEDs (PNP) |
| Cable Number:: | 224 |
| Conductor Size:: | 0.34 mm² |
| Number of Wires:: | 3 |
| Minimal Bending Radius (Fixed Inst):: | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst):: | ˃ 10 x D |
| Cycles (Bending):: | ˃ 1 M |
| Conductor material:: | Cu |
| Conductor material:: | Cu |
| Cable Jacket Color:: | orange |
| Cable Jacket Color:: | black matt similarly RAL 9005 |
| Wire Insulation Material:: | PVC |
| Wire Insulation Material:: | PP |
| Insulated Wire Diameter:: | ø 1.30 ± 0.10 mm |
| Ambient Temperature (Flex Installation):: | + 5 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst):: | + 5 °C - + 60 °C |
| UL Cable Type:: | AWM: 2464 |
| UL Cable Type:: | AWM: 20549 |
| Flammability Class (Cable Jacket):: | DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
| Cable Characteristics:: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness Flexibilty |
| UL:: | UL 2238; cURus |
| UL:: | UL 2238; cURus |
| RoHS Compliant:: | yes |
| Note Derating:: | Notice derating |
| Oil Resistance:: | Good chemical and oil resistance |
| Note Derating:: | Notice derating |
| Protection Degree / IP Rating Note:: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| 11319: | RKMW/LED A 3-06/5 M |
| 40536: | RKMW/LED A 3-224/2 M |
| 43582: | RKMW/LED A 3-224/5 M |
| 43578: | RKMW/LED A 3-224/10 M |
| 934637079: | RKMW/LED A 3-224/30 M |
