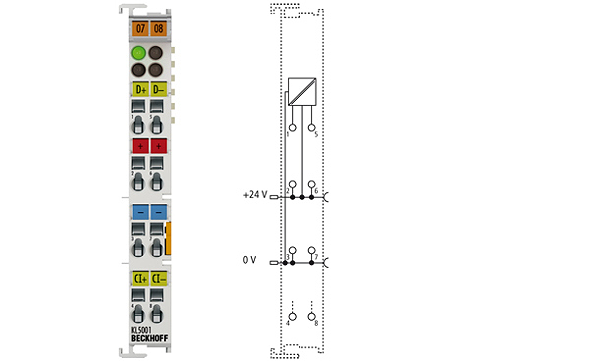

Beckhoff KL5001
KL5001 | SSI encoder interface
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The KL5001 SSI interface terminal enables the direct connection of an SSI encoder that is powered via the SSI interface. The interface circuit generates a pulse for reading the encoder and makes the incoming data stream available to the controller as a data word in the process image. Various operating modes, transmission frequencies and bit widths can be permanently stored in a control register. A screen can be connected via the KL9195 shield terminal.
Parametry techniczne
| Technology: | SSI encoder interface |
| Number of channels: | 1 encoder interface |
| Encoder connection: | binary input: D+, D-, binary output: Cl+, Cl- |
| Power supply: | 24 V DC via power contacts |
| Current consumption: | typ. 20 mA without encoder |
| Current consumption power contacts: | typ. 20 mA + load |
| Encoder supply: | 24 V DC via power contacts |
| Data transfer rates: | variable up to 1 MHz, 250 kHz default |
| Serial input: | 24 bit width (variable) |
| Data direction: | read |
| Signal output: | difference signal (RS422) |
| Signal input: | difference signal (RS422) |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption K-bus: | typ. 25 mA |
| Bit width in the process image: | input: 1 x 32 bit data (1 x 8 bit control/status optional) |
| Weight: | approx. 60 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
