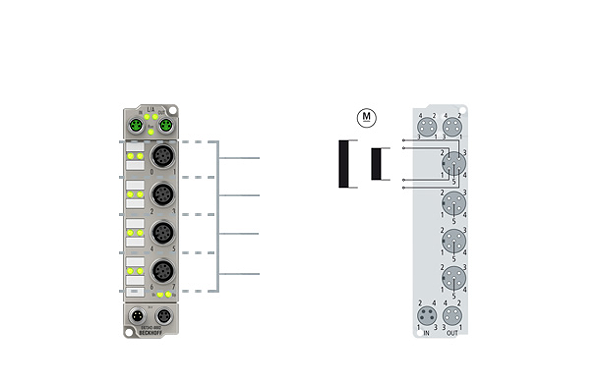

Beckhoff ER7342-0002
ER7342-0002 | 2-channel DC motor output stage 50 V DC, 3.5 A
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The ER7342 EtherCAT Box enables direct operation of two DC motors. The speed or position is specified by the automation device via a 16 bit value. By connection of an incremental encoder (24 V DC, single-ended), a simple servo axis can be realised. The output stage is protected against overload and short-circuit. The EtherCAT Box has two channels that indicate their signal state via light emitting diodes. The LEDs enable quick local diagnosis.
Parametry techniczne
| Number of outputs: | 2 |
| Connection method: | M12, screw type |
| Rated load voltage: | 8…50 V DC |
| Load type: | DC brush motor, inductive |
| Distributed clocks: | yes |
| Protocol: | EtherCAT |
| Output current: | max. 2 x 3.5 A (short-circuit proof, common thermal overload warning for both output stages) per channel |
| PWM clock frequency: | 32 kHz with 180° phase shift each |
| Duty factor: | 0…100 % (voltage-controlled) |
| Resolution: | max. 10 bit current, 16 bit speed |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 2 x 32 bit status, 2 x 32 bit control, 2 x 32 bit input, 2 x 32 bit output |
| Electrical isolation: | 500 V |
| Configuration: | adaptation and optimisation of the respective motor via the controller |
| Current consumption sensor supply: | 20 mA (see documentation) |
| Current consumption from US: | 120 mA |
| Special features: | travel distance control, encoder input |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
