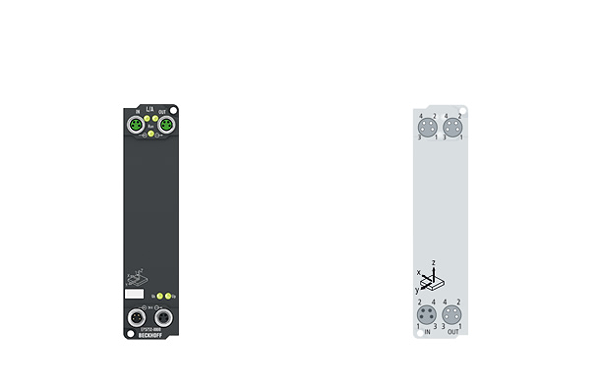

EP3752-0000 | 2 x 3-axis accelerometers
Opis
The EP3752-0000 EtherCAT Box has two internal 3-axis accelerometers with 10 bits and a selectable measuring range of ±2 g, ±4 g, ±8 g and ±16 g. The sampling frequency is 1 Hz to 5 kHz. Possible applications include the recording of vibrations and shocks/oscillations, and furthermore inclination measurements in all three axes. Since measurement is carried out with two sensors that are positioned at an angle of 90° to each other, the control system can check measured data for plausibility. Extended integrated filter functions allow measured data to be pre-processed and appropriately scaled in order to filter disturbances and to relieve the workload of the control system.
Parametry techniczne
| Number of inputs: | 2 x 3 |
| Input connections: | 3-axis accelerometers internally |
| Sensors: | ±2…16 g, programmable |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Resolution: | 10 bit (incl. sign) |
| Sampling rate: | up to 5 kHz |
| Distributed clocks: | yes |
| Sensor supply: | from control voltage US |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Current consumption from US: | 120 mA |
| Electrical isolation: | 500 V |
| Special features: | extended filter functions, tilt measurement |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
