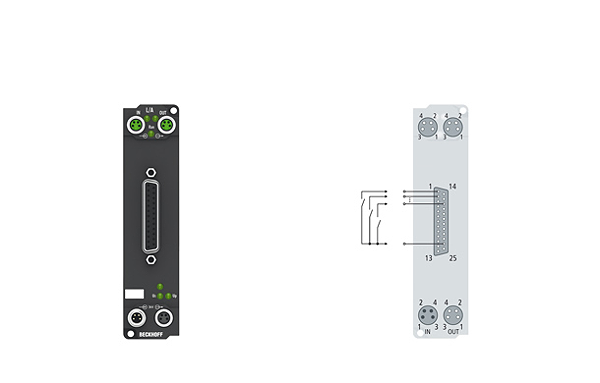

Beckhoff EP1816-0008
EP1816-0008 | 16-channel digital input 24 V DC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The EP1816 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via 25-pin D-sub socket.
Parametry techniczne
| Specification: | EN 61131-2, type 1/3 |
| Number of inputs: | 16 |
| Input connections: | D-sub socket, 25-pin |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Nominal input voltage: | 24 V DC (-15 %/+20 %) |
| Input filter: | 10 µs |
| “0“ signal voltage: | -3…+5 V (EN 61131-2, type 3) |
| “1“ signal voltage: | 11…30 V (EN 61131-2, type 3) |
| Input current: | typ. 3 mA (EN 61131-2, type 3) |
| Distributed clocks: | yes |
| Sensor supply: | from control voltage, max. 0.5 A total, short-circuit-proof |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | 16 inputs |
| Current consumption from US (without sensor current): | 120 mA |
| Electrical isolation: | 500 V |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
