Beckhoff EL9576

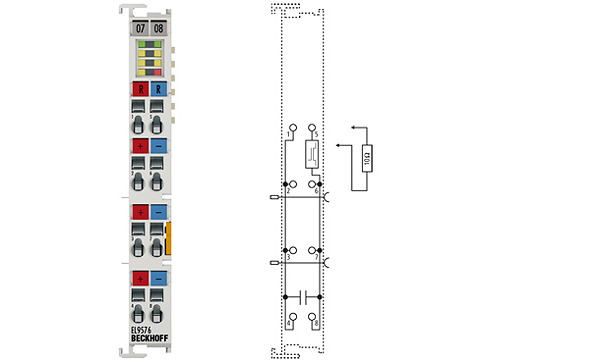

EL9576 | Brake chopper terminal
Opis
The EL9576 EtherCAT Terminal contains high-performance capacitors for stabilising supply voltages. The EL9576 can be used in conjunction with the EL70x1 stepper motor terminals, the EL73x2 DC motor terminals and the EL72x1 servomotor terminals. Low internal resistance and high-pulsed current capability enable good buffering in parallel with a power supply unit. Return currents are stored, particularly in the context of drive applications, thus preventing overvoltages. If the regenerative energy exceeds the capacity of the capacitors, energy can be dissipated via an external braking resistor. The corresponding threshold can be directly parameterised in the TwinCAT System Manager.
Parametry techniczne
| Technology: | brake chopper |
| Nominal voltage: | arbitrary up to 72 V |
| Capacity: | 155 µF |
| Ripple current (max.): | 10 A |
| Internal resistance: | < 5 mΩ |
| Chopper voltage: | adjustable |
| Recommended braking resistor: | 10 Ω, typ. 100 W (depending on application) |
| Overvoltage control range: | typ. 1 V, parameterisable by CoE data |
| Braking resistor clock rate: | load-dependent, max. 100 µs, 2-point control |
| Electrical isolation: | 1500 V (E-bus/field potential) |
| Diagnostics: | temperature on board, over-/undervoltage |
| Special features: | adjustabel threshold |
| Weight: | approx. 90 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL |
