ABB 2CPX035073R9999

KA4265H5

KA4265H5 Transformer meterboard OH5

Opis

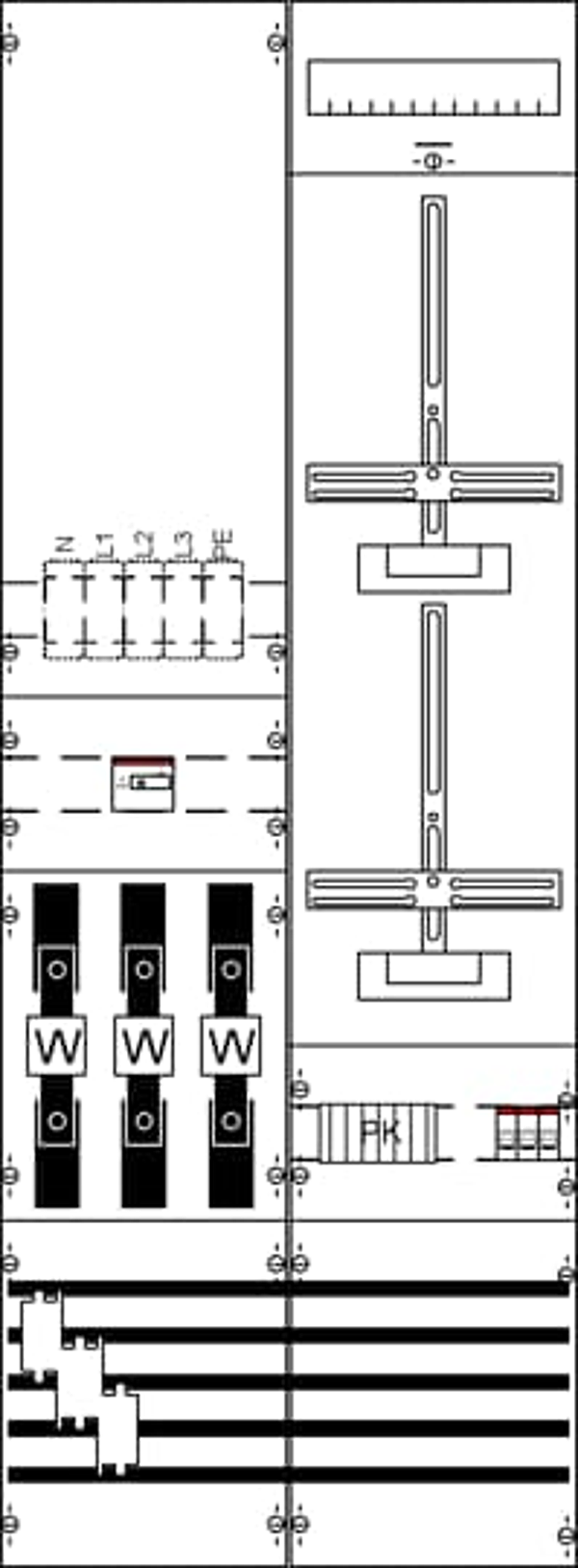

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 125 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path 3 low voltage path switches Z10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole and main terminal with 2 outgoing 50qmm, primary wiring 50 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 192, covers out of Plastic, Quick sealable connection, RAL 7035
