ABB 2CPX032623R9999

KS449

KS449 Complete cabinet for transf

Opis

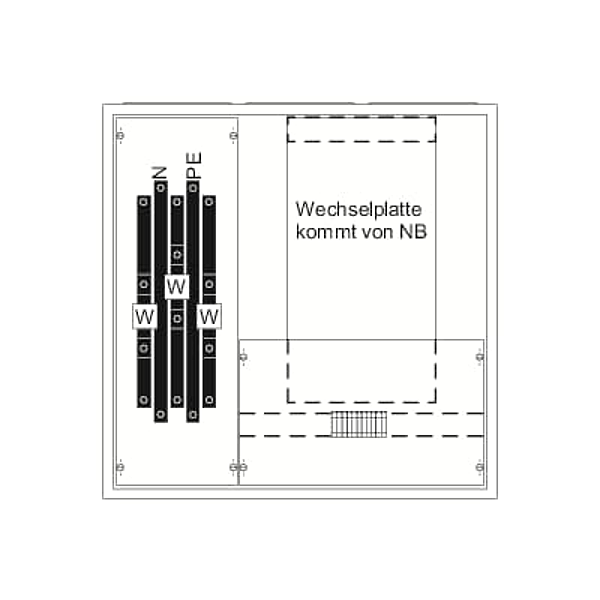

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparente single-leaf door, with Swivel handle, door hinge right and left, dimensions in mm (H x W x D): 800 x 800 x 215, not pre-wired, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), Test terminal X1 (10 connection points), Connection N+PE (M10), Note: Incomer cabinet EK220 recommended, connection set for voltage path and current may be required, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
